| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
4,020 pcs
|
4020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,173 pcs
|
1173 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Height | |
| Input Type | |
| Interface | |
| Length | |
| Load Current | |
| Mounting Type | |
| Number of Channels | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Transistor Type | |
| Voltage | |
| Width |

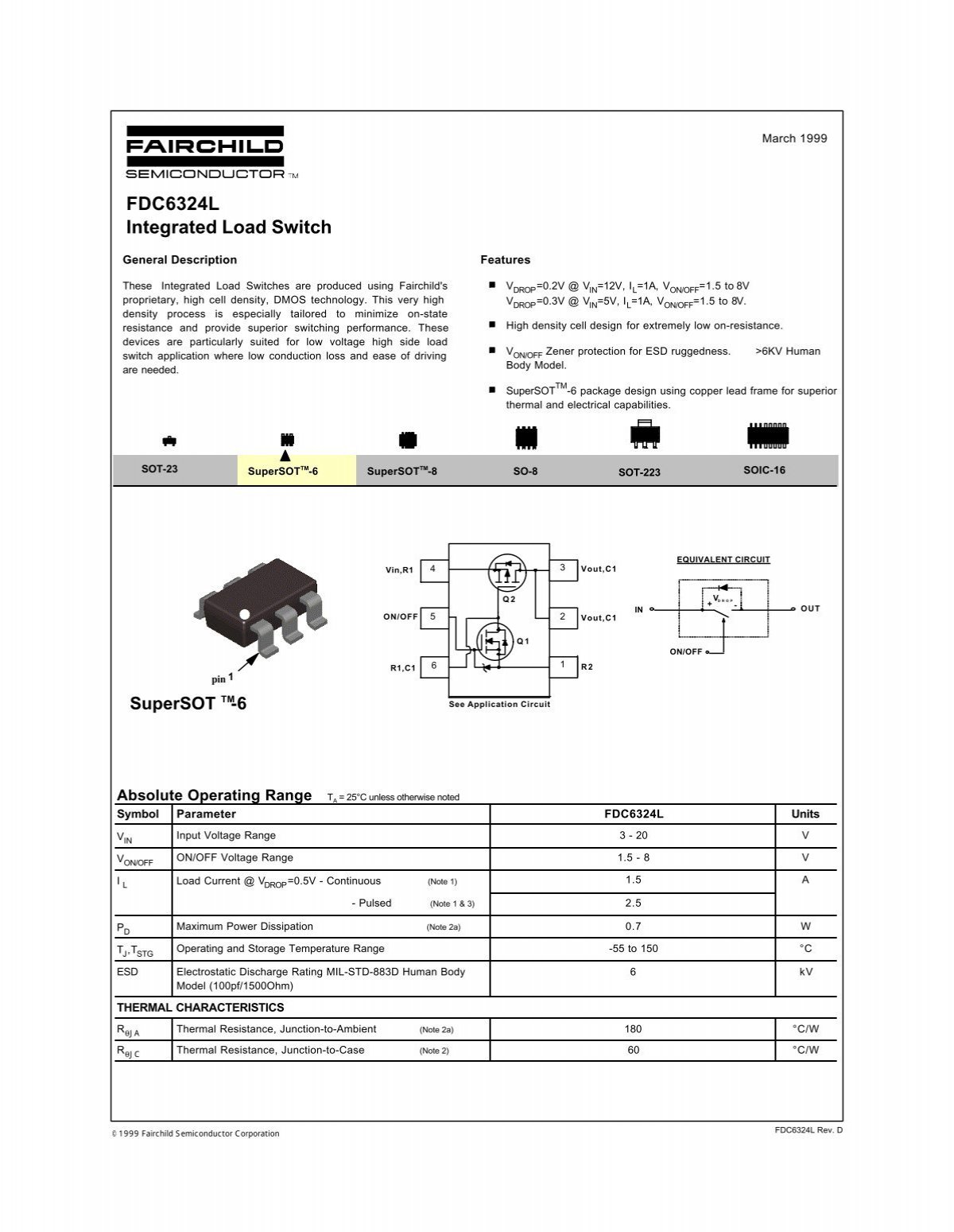

The FDC6324L from ON Semiconductor is an integrated load switch utilizing proprietary high cell density DMOS technology. This design minimizes on-state resistance and provides superior switching performance, making it suitable for low voltage high side load switch applications where low conduction loss and ease of driving are essential.
Key electrical specifications include an input voltage range of 3V to 20V and an on/off voltage range of 1.5V to 8V. It supports a continuous load current of 1.5A at a VDROP of 0.5V, with a pulsed load current capability of 2.5A. The device offers a low conduction voltage drop, typically 0.135V at 1A and 10V input.
Packaged in a SuperSOT™-6 (TSOT-23-6) surface-mount package, the FDC6324L is designed with a copper lead frame for enhanced thermal and electrical performance. It is Pb-Free and Halide Free, operating within a temperature range of -55°C to 150°C.
This integrated load switch is particularly suited for applications requiring efficient power management and protection, benefiting from its high density cell design and ESD ruggedness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the FDC6324L is 3V to 20V.
The FDC6324L has a continuous drain current rating of 1.5A at VDROP = 0.5V.
The operating temperature range for the FDC6324L is -55°C to 150°C.
The FDC6324L is supplied in a SuperSOT-6 (TSOT-23-6) package.
Yes, the FDC6324L is RoHS3 compliant.
Yes, the FDC6324L is Pb-Free and Halide Free.
