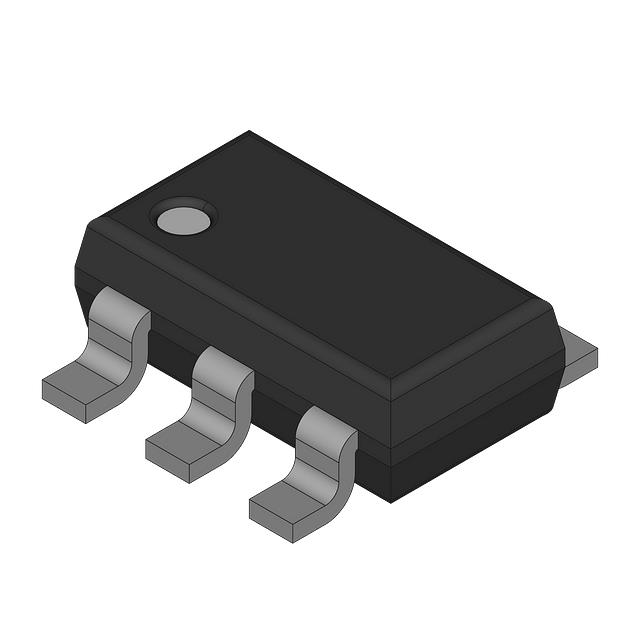

The FDC6302P is a dual P-channel MOSFET array from On Semiconductor, designed for space-constrained surface-mount applications. It integrates two independent P-channel MOSFETs in a single SOT-23-6 Thin (TSOT-23-6) package, offering a compact solution for switching and load-control circuits.
Key electrical specifications include a maximum drain-to-source voltage of 25V, a nominal drain current of 120mA, and a maximum power dissipation of 700mW. The device features a logic-level gate with a maximum threshold voltage of 1.5V at 250µA, enabling direct drive from low-voltage logic circuits. On-resistance is specified at a maximum of 10 Ohm at 200mA drain current and 4.5V gate-source voltage.
The MOSFET exhibits low gate charge (0.31nC at 4.5V) and low input capacitance (11pF at 10V), making it suitable for high-frequency switching applications. The operating temperature range spans from -55°C to 150°C, supporting use in demanding environments.
Packaged in the SuperSOT-6 supplier device package with surface-mount gull-wing terminations, the FDC6302P is suitable for automated assembly in portable electronics, battery management, and signal switching applications.
| Qty | Low | High |
|---|---|---|
| 779+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 25V.
The nominal drain current is 120mA.
The maximum on-resistance is 10 Ohm at 200mA drain current and 4.5V gate-source voltage.
The operating temperature range is -55°C to 150°C.
The FDC6302P is available in a SOT-23-6 Thin (TSOT-23-6) package with a SuperSOT-6 supplier device package.
The RoHS status is listed as RoHS3 Compliant, but this value is unverified and should be confirmed with the manufacturer.
Yes, the FDC6302P features a logic-level gate with a maximum threshold voltage of 1.5V at 250µA drain current.
