| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,101 pcs
|
1101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

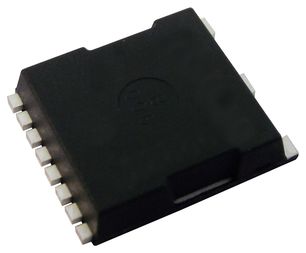

The FDBL0210N80 is an N-Channel power MOSFET from ON Semiconductor, designed for high-current switching applications. It features a drain-source voltage (Vdss) of 80V and a continuous drain current (Id) of 240A at Tc, making it suitable for demanding power management tasks. The device achieves a low on-resistance of 2mOhm maximum at Id=80A and Vgs=10V, minimizing conduction losses.
This MOSFET utilizes MOSFET (Metal Oxide) technology and offers a maximum power dissipation of 357W at Tj. The gate charge (Qg) is 169nC at Vgs=10V, and input capacitance (Ciss) is 10pF at Vds=40V, providing moderate switching performance. The gate threshold voltage (Vgs(th)) is 4V maximum at Id=250µA, and the maximum gate-source voltage is ±20V.
The device is housed in an 8-PowerSFN package with a supplier device package of 8-HPSOF, designed for surface mount assembly. It operates over a junction temperature range of -55°C to 175°C. The FDBL0210N80 is RoHS3 compliant and REACH unaffected, with an MSL of Level 1 (unlimited). It is commonly used in power supplies, DC-DC converters, motor drives, and other high-current switching circuits.
The drain-source voltage (Vdss) is 80V.
The continuous drain current (Id) is 240A at Tc.
The maximum on-resistance (Rds On) is 2mOhm at Id=80A and Vgs=10V.
It is available in an 8-PowerSFN surface mount package with supplier device package 8-HPSOF.
The operating junction temperature range is -55°C to 175°C.
Yes, it is RoHS3 compliant as verified in the datasheet.
The maximum gate charge (Qg) is 169nC at Vgs=10V.
