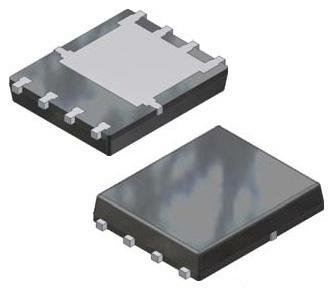

FDBL0150N80 N-Channel power MOSFET with 80V drain-source voltage rating and 300A continuous drain current. Low on-resistance of 1.4mOhm typical at 10V gate drive.
Mfr Part #:

FDBL0150N80

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
N-Channel power MOSFET with 80V drain-source voltage rating and 300A continuous drain current. Low on-resistance of 1.4mOhm typical at 10V gate drive.
✓ Total Stock: 5,645 pcs

FDBL0150N80 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,645 pcs
On Request
2645 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 21+22+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDBL0150N80 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDBL0150N80 Description

Short technical summary and product information.

The FDBL0150N80 is an N-Channel power MOSFET from ON Semiconductor designed for high-current switching applications. It features a drain-source voltage rating of 80V and a continuous drain current of 300A, making it suitable for demanding power conversion and motor control circuits.



The device offers a low maximum on-resistance of 1.4mOhm at Vgs=10V and Id=80A, which minimizes conduction losses. The gate charge is 188nC maximum at 10V, and the input capacitance is 12800pF at Vds=25V. The gate threshold voltage is 4V maximum at Id=250µA, and the maximum gate-source voltage is ±20V.



The MOSFET is housed in an 8-PowerSFN surface-mount package with a supplier device package designation of 8-HPSOF. It operates over a junction temperature range of -55°C to 175°C and has a maximum power dissipation of 429W.

FDBL0150N80 Quick Information

Product Type: MOSFET
Series: FDBL0150N80
Canonical Name: FDBL0150N80 N-Channel Power MOSFET
Subcategory: Single N-Channel Power MOSFET

FDBL0150N80 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDBL0150N80 Features

  • N-Channel MOSFET with 80V drain-source rating.
  • 300A continuous drain current capability.
  • Low 1.4mOhm on-resistance at 10V gate drive.
  • Surface-mount 8-HPSOF package for compact designs.
  • Wide operating temperature range -55°C to 175°C.

FDBL0150N80 Applications

  • High-current DC-DC converter power stages.
  • Motor drive and inverter circuits.
  • Battery protection and management systems.
  • Power supply OR-ing and load switching.

FDBL0150N80 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the FDBL0150N80?

The drain-source voltage (Vdss) is 80V.

What is the maximum continuous drain current?

The maximum continuous drain current is 300A.

What is the on-resistance of this MOSFET?

The maximum on-resistance is 1.4mOhm at Vgs=10V and Id=80A.

What package does the FDBL0150N80 use?

It uses an 8-PowerSFN surface-mount package, also designated as 8-HPSOF.

What is the operating temperature range?

The operating junction temperature range is -55°C to 175°C.

Is the FDBL0150N80 RoHS compliant?

The part is listed as RoHS3 Compliant, though this is unverified.
