| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
238 pcs
|
238 pcs | On Request | 1 | On Request | On Request | 906 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Gate-Source Voltage | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Rds On (Max) @ Id, Vgs | |
| Single Pulse Avalanche Energy | |
| Supplier Device Package | |
| Technology | |
| Thermal Resistance - Junction to Case | |
| Vgs(th) (Max) @ Id | |
| Zero Gate Voltage Drain Current |

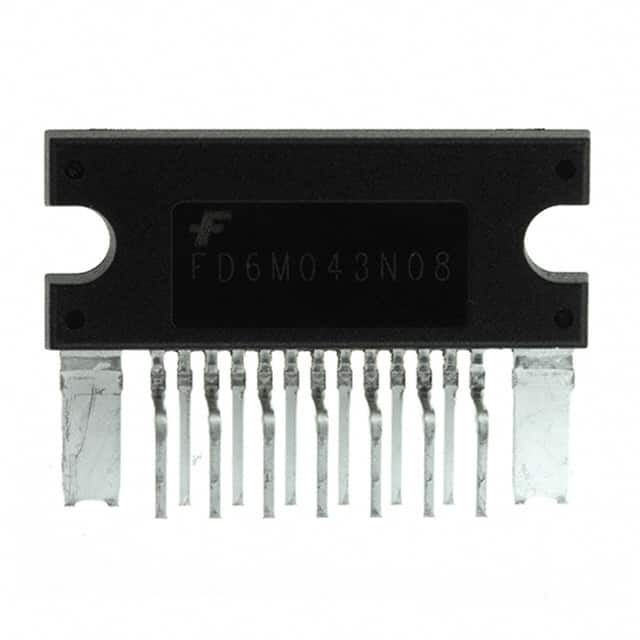

The FD6M043N08 is a dual N-Channel Power MOSFET module from On Semiconductor, designed for high-efficiency synchronous rectification in isolated power converters. It integrates two MOSFETs in a single EPM15 through-hole package, offering a compact solution for high-current applications.
Key electrical specifications include a maximum drain-source voltage of 75V, continuous drain current of 65A, and typical on-resistance of 3.5mOhm at Vgs=10V, Id=40A (maximum 4.3mOhm). The device has a total gate charge of 99nC typical at Vgs=10V, input capacitance of 6180pF at Vds=25V, and single pulse avalanche energy rating of 681mJ. Operating junction temperature range is -40°C to 150°C, with a thermal resistance junction-to-case of 3.9°C/W.
The module is suitable for synchronous rectification in forward/bridge converters, DC/DC converters, distributed power architectures, and ORing MOSFET applications. The EPM15 package provides fully isolated mounting through through-hole pins. The device is RoHS3 compliant.
The operating junction temperature range is -40°C to 150°C.
Yes, the FD6M043N08 is RoHS3 compliant.
The FD6M043N08 is housed in an EPM15 through-hole package.
The maximum drain-source voltage is 75V.
The maximum continuous drain current is 65A.
The typical on-resistance is 3.5mOhm at Vgs=10V, Id=40A, with a maximum of 4.3mOhm.
The total gate charge is 99nC typical at Vgs=10V, with a maximum of 148nC.
