| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

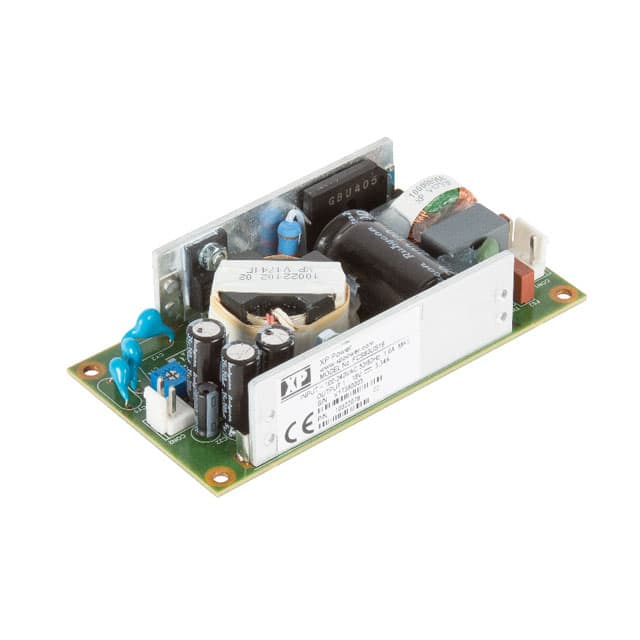

The XP Power FCS60US48 is a 60W AC-DC power supply designed for efficiency and reliability. It provides a 48V output voltage with a current rating of 1.25A, achieving up to 86% efficiency. This open frame converter features a compact footprint and low profile, measuring 101.6mm x 50.8mm x 26.4mm, making it suitable for space-constrained designs.
Designed for versatility, the FCS60US48 supports universal input from 80-264 VAC and operates within a temperature range of -25°C to 70°C with derating. It includes essential protections such as overload, overvoltage, and short circuit protection. The unit is approved for ITE (Commercial) and Medical applications, supporting Class I and Class II installations.
Key electrical specifications include line regulation of ±0.5% and load regulation of 1%. It offers a low no-load input power of less than 0.3W, contributing to energy efficiency. The chassis mount type ensures secure installation in various equipment.
This power supply is suitable for a wide range of applications including household appliances, ITE equipment, and medical devices, where reliable power conversion is critical. Its robust design and safety approvals facilitate integration into demanding systems.
The FCS60US48 provides an output voltage range of 12-48 VDC and an output current range of 1.25-5.00 A.
The FCS60US48 has a power rating of 60W.
The typical efficiency for the FCS60US48 is 85-86%, measured at full load and 230 VAC input.
The dimensions of the FCS60US48 are 101.6mm (Length) x 50.8mm (Width) x 26.4mm (Height).
The operating temperature range for the FCS60US48 is -25°C to 70°C, with derating.
The FCS60US48 is approved for Medical, ITE (Commercial), and Household Appliance applications.
Yes, the FCS60US48 features overload protection ranging from 110% to 160% of the nominal current.
