| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

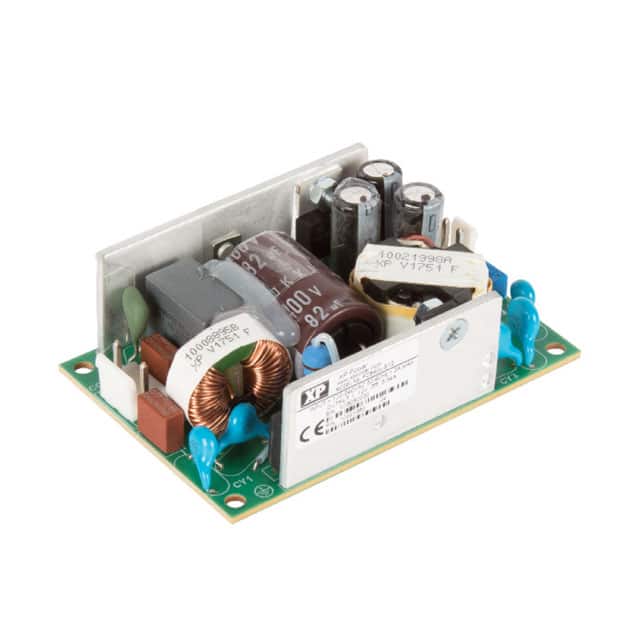

The XP Power FCS40US36 is a versatile 40W AC-DC power supply designed for various applications including ITE, medical, and household appliances. It delivers a stable 36V output at 1.11A with a high efficiency of 84% at full load and 230 VAC input.
This open frame power supply features a compact footprint and low profile, measuring 76.2mm x 50.8mm x 26.5mm. It supports a wide input voltage range of 90-264 VAC and offers features such as adjustable output, overvoltage protection, overload protection, and short circuit protection. The operating temperature range is -25°C to 70°C with derating.
Designed for reliability and efficiency, the FCS40US36 minimizes no-load power consumption and meets stringent environmental legislation requirements. It is approved for Class I and Class II installations, making it suitable for demanding applications requiring safety and performance.
Key electrical specifications include line regulation of ±0.5%, load regulation of 1%, and ripple & noise of 1% pk-pk. The unit also boasts a low no-load input power of less than 0.3W.
The output voltage is 36VDC.
The maximum output current is 1.11A.
The typical efficiency is 84% at full load and 230 VAC input.
The dimensions are 76.2mm x 50.8mm x 26.5mm.
The operating temperature range is -25°C to 70°C with derating.
It is approved for medical, ITE (commercial), and household appliance applications.
Yes, it features overload protection ranging from 110% to 180% of nominal current.
