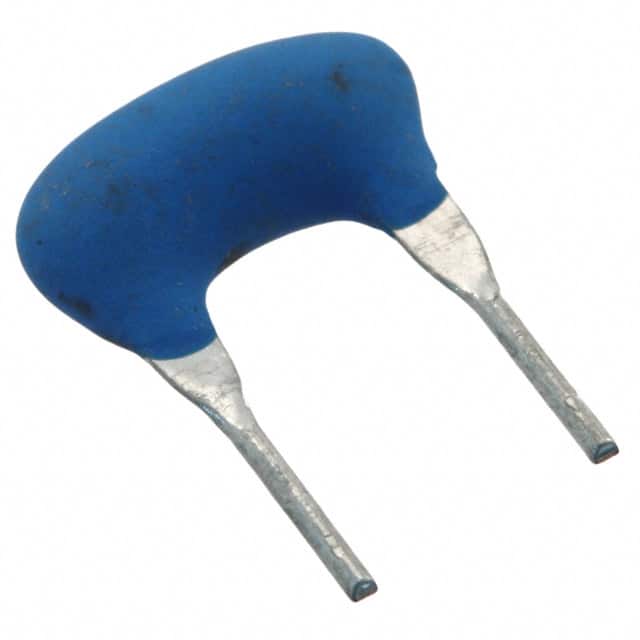

FCR4.0M5 The FCR4.0M5 is a 4 MHz ceramic resonator from TDK's FCR series. It features a through hole radial lead package and is RoHS compliant.
Mfr Part #:

FCR4.0M5

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
The FCR4.0M5 is a 4 MHz ceramic resonator from TDK's FCR series. It features a through hole radial lead package and is RoHS compliant.
✓ Total Stock: 5,000 pcs

FCR4.0M5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FCR4.0M5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Height
Impedance
Lead Spacing
Lead Style
Length
Load Capacitance
Mounting Type
Operating Temperature
Tape & Reel
Termination Style
Type
Width
View Similar Products (0)

FCR4.0M5 Description

Short technical summary and product information.

This is a 4 MHz ceramic resonator from TDK Corporation's FCR series. It utilizes a thickness shear mode piezoelectric element, offering stable oscillating frequency.



The resonator has a frequency tolerance of ±0.5% and frequency stability of ±0.3% over -40°C to +85°C. It has an impedance of 20 Ω. The component is designed for through hole mounting with a radial lead package (5.00mm lead spacing).



The FCR4.0M5 is an external loading type, meaning external capacitors are required for proper oscillation. It is RoHS3 compliant and operates over a temperature range of -40°C to 85°C. Typical applications include timing reference in microcontrollers and clock generation.

FCR4.0M5 Quick Information

Product Type: Resonator
Series: FCR
Canonical Name: Ceramic Resonator 4 MHz, Through Hole, Radial
Subcategory: Lead Type Ceramic Resonator

FCR4.0M5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FCR4.0M5 Features

  • 4 MHz nominal frequency ceramic resonator.
  • ±0.5% initial frequency tolerance at 25°C.
  • ±0.3% frequency stability over -40 to +85°C.
  • Through hole radial lead package with 5.00mm pitch.
  • RoHS3 compliant and REACH unaffected.

FCR4.0M5 Applications

  • Timing reference for microcontroller circuits.
  • Frequency source for consumer electronics.
  • Clock generation in industrial control systems.
  • Replacement for quartz crystals in cost-sensitive designs.

FCR4.0M5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the FCR4.0M5 resonator?

Radial - 2 Lead, 5.00mm Pitch

What is the operating temperature range of the FCR4.0M5?

-40°C to +85°C

Is the FCR4.0M5 RoHS compliant?

Yes, it is RoHS3 compliant per datasheet.

What is the frequency of this resonator?

4 MHz

What is the frequency stability over temperature?

±0.3% from -40 to +85°C

What is the impedance of the FCR4.0M5?

20 Ω

Does the FCR4.0M5 require external load capacitors?

Yes, it is an external loading type (M5 model) so external capacitors are needed.
