FCQS20A065 Schottky diode rated for 65V reverse voltage and 20A average rectified current, with 630mV forward voltage at 10A. Packaged in TO-220 Full-Mold through-hole.
Mfr Part #:

FCQS20A065

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Schottky diode rated for 65V reverse voltage and 20A average rectified current, with 630mV forward voltage at 10A. Packaged in TO-220 Full-Mold through-hole.
✓ Total Stock: 17,500 pcs

FCQS20A065 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
17,500 pcs
On Request
17500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FCQS20A065 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Tape & Reel
Technology
Termination Style
Voltage
View Similar Products (0)

FCQS20A065 Description

Short technical summary and product information.

The FCQS20A065 is a Schottky rectifier diode from Kyocera AVX designed for high-efficiency power conversion. It features a reverse voltage rating of 65V and an average rectified current of 20A, with a typical forward voltage of 630mV at 10A. The fast recovery characteristic (≤500ns) makes it suitable for switching applications.

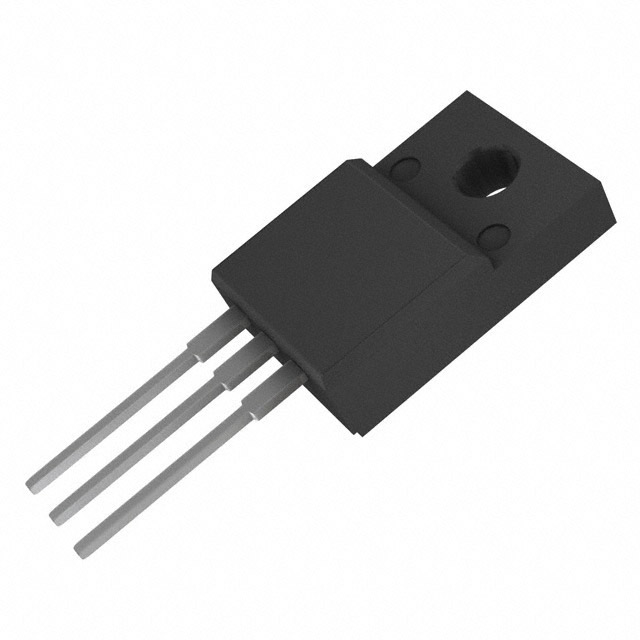

This diode is housed in a TO-220 Full-Mold package, which provides through-hole mounting and good thermal performance. The operating temperature range is -40°C to 150°C, allowing use in demanding environments. The Schottky technology offers low forward voltage drop, reducing power dissipation.



Typical applications include power supplies, DC-DC converters, and freewheeling diodes in inductive circuits. The TO-220 Full-Mold package ensures robust mechanical and thermal handling.

FCQS20A065 Quick Information

Product Type: Schottky Diode
Canonical Name: FCQS20A065 Schottky Diode 65V 20A TO-220 Full-Mold
Subcategory: Schottky Diode

FCQS20A065 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FCQS20A065 Features

  • Schottky technology for low forward voltage drop.
  • Rated for 65V reverse voltage and 20A forward current.
  • Fast recovery time under 500 nanoseconds.
  • TO-220 Full-Mold through-hole package.
  • Operating temperature range -40°C to 150°C.

FCQS20A065 Applications

  • Power supply output rectification.
  • DC-DC converter freewheeling diode.
  • High-frequency switching circuits.
  • Reverse polarity protection.

FCQS20A065 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating of the FCQS20A065?

65V.

What is the average rectified current rating?

20A.

What is the forward voltage drop?

630mV typical at 10A.

What is the recovery time?

Fast recovery ≤500ns.

What package is the FCQS20A065 available in?

TO-220-3 Full Pack (TO-220 Full-Mold).

What is the operating temperature range?

-40°C to 150°C.

What is the mounting type?

Through hole.
