| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94,000 pcs
|
94000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Avalanche Current | |
| Current | |
| Drain Current (Maximum @ Tc=100 °C) | |
| Drain Current (Maximum @ pulsed) | |
| Drain to Source Voltage (Vdss) | |
| Drain-Source On-Resistance (Typical/Max @ Id=6A, Vgs=10V) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Gate Charge (Typical) @ Vgs = 10V | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| MOSFET dv/dt | |
| Mounting Type | |
| Operating Temperature | |
| Output Capacitance (Effective) (Typical) | |
| Peak Diode Recovery dv/dt | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Single Pulsed Avalanche Energy | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Thermal Resistance Junction to Ambient (Max) | |
| Thermal Resistance, Junction to Case (Max) | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FCPF250N65S3R0L is an N-Channel Power MOSFET manufactured by ON Semiconductor, part of the SUPERFET III family with Easy Drive technology. This device is designed for high efficiency power conversion applications.
Key electrical specifications include a drain-source breakdown voltage of 650V, continuous drain current of 12A at 25°C (7.6A at 100°C), and a maximum drain-source on-resistance of 250mOhm (typical 210mOhm at Id=6A, Vgs=10V). The gate threshold voltage is 4.5V max, and the gate charge is typically 24nC at Vgs=10V. Input capacitance is 1010pF max at Vds=400V, and output capacitance is 248pF typical.
The device is 100% avalanche tested with single pulse avalanche energy of 57mJ and avalanche current of 2.3A. It can withstand high dv/dt rates up to 100V/ns. The operating junction temperature range is -55°C to 150°C.

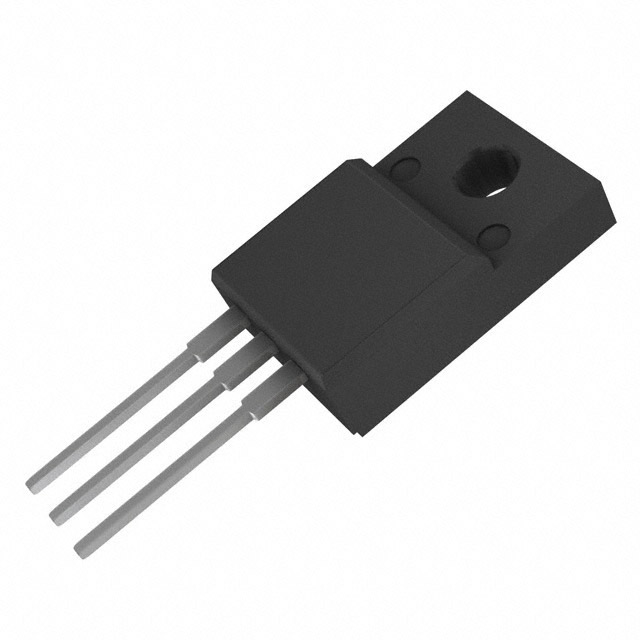

The FCPF250N65S3R0L is housed in a TO-220-3 Full Pack (TO-220F-3) through-hole package, providing electrical isolation. It is RoHS compliant and Pb-Free. Typical applications include computing and display power supplies, telecom and server power supplies, industrial power supplies, and lighting/charger/adapter circuits.
The drain-source voltage rating is 650 V.
It comes in a TO-220-3 Full Pack package (TO-220F-3).
-55°C to 150°C (junction temperature).
Yes, it is RoHS3 compliant as per the datasheet.
Typical gate charge is 24 nC at Vgs=10V.
Maximum on-resistance is 250 mOhm at Id=6A, Vgs=10V.
57 mJ at IAS=2.3A, starting junction temperature 25°C.
