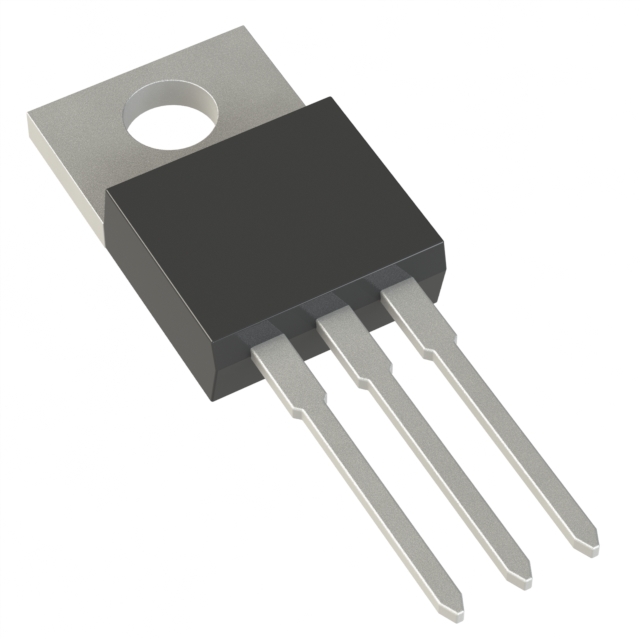

FCP600N65S3R0 FCP600N65S3R0 is a 650V, 6A N-Channel Power MOSFET from On Semiconductor's SUPERFET III series. It features low gate charge (11nC) and low effective output capacitance (127pF) for efficient switching in power supply applications.
Mfr Part #:

FCP600N65S3R0

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
FCP600N65S3R0 is a 650V, 6A N-Channel Power MOSFET from On Semiconductor's SUPERFET III series. It features low gate charge (11nC) and low effective output capacitance (127pF) for efficient switching in power supply applications.
✓ Total Stock: 7,700 pcs

FCP600N65S3R0 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,220 pcs
On Request
4220 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,480 pcs
On Request
3480 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FCP600N65S3R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FCP600N65S3R0 Description

Short technical summary and product information.

The FCP600N65S3R0 is an N-Channel Power MOSFET from On Semiconductor, part of the SUPERFET III Easy Drive series. It utilizes charge balance technology to achieve a typical on-resistance of 493 mΩ and a maximum of 600 mΩ at 10V gate drive. The device is rated for 650V drain-source voltage and can handle 6A continuous drain current at 25°C case temperature.



Key electrical characteristics include ultra-low gate charge (typical 11 nC) and low effective output capacitance (typical 127 pF), enabling high-frequency switching with reduced drive losses. The MOSFET is 100% avalanche tested, with single pulsed avalanche energy rated at 24 mJ and repetitive avalanche energy at 0.54 mJ. It also offers a 100 V/ns MOSFET dv/dt rating and peak diode recovery dv/dt of 20 V/ns.



This component is housed in a through-hole TO-220-3 package, supplied in tubes of 50 units per tube. It is Pb-Free and RoHS compliant, ensuring environmental compatibility. The operating junction temperature range is -55°C to 150°C, with a junction-to-case thermal resistance of 2.3°C/W and junction-to-ambient of 62.5°C/W.



Typical applications include computing and display power supplies, telecom and server power supplies, industrial power supplies, and lighting/charger/adapter circuits.

FCP600N65S3R0 Quick Information

Product Type: N-Channel MOSFET
Series: Easy Drive
Canonical Name: FCP600N65S3R0 N-Channel MOSFET 650V 6A
Subcategory: Power MOSFET

FCP600N65S3R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free and RoHS Compliant

FCP600N65S3R0 Features

  • N-Channel MOSFET rated for 650V drain-source.
  • Low on-resistance at 600 mΩ typical.
  • Ultra low gate charge of 11 nC typical.
  • 100% avalanche tested for ruggedness.
  • Pb-Free and RoHS compliant package.

FCP600N65S3R0 Applications

  • Used in computing and display power supplies.
  • Suitable for telecom and server power supplies.
  • Ideal for industrial power supply designs.
  • Applicable in lighting, charger, and adapters.

FCP600N65S3R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage?

650 V

What is the package type?

TO-220-3

What is the operating temperature range?

-55°C to 150°C junction temperature

Is this part RoHS compliant?

Yes, it is Pb-Free and RoHS Compliant as stated in the datasheet.

What is the on-resistance?

Maximum 600 mΩ at 10V gate drive with 3A drain current.

What is the continuous drain current?

6A at 25°C case temperature, derated to 3.8A at 100°C.

What is the gate charge?

Maximum 11 nC at 10V gate-source voltage.
