| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

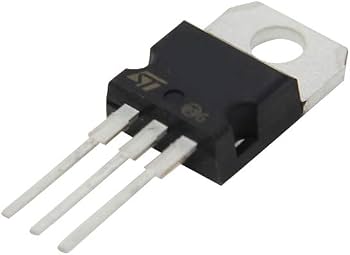

The FCP20N60 is an N-Channel SuperFET MOSFET from On Semiconductor. It features a drain-source voltage of 600V and continuous drain current of 20A (Tc=25°C). The typical on-resistance is 150mΩ with a maximum of 190mΩ at 10V gate drive. This device utilizes charge balance technology to achieve low conduction loss and superior switching performance. It has a low gate charge (typical 75nC) and low effective output capacitance. The MOSFET is avalanche tested and supports high dv/dt ratings. Applications include solar inverters, AC-DC power supplies, and other switching power applications. The device is housed in a TO-220-3 through-hole package and is RoHS compliant.
600V.
TO-220-3.
-55°C to 150°C (junction temperature).
Yes, the component is RoHS3 compliant per the datasheet.
20A at Tc=25°C, 12.5A at Tc=100°C.
150mΩ typical, 190mΩ maximum at 10A, 10V.
75nC typical, 98nC maximum at Vgs=10V.
