| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,544 pcs
|
22544 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

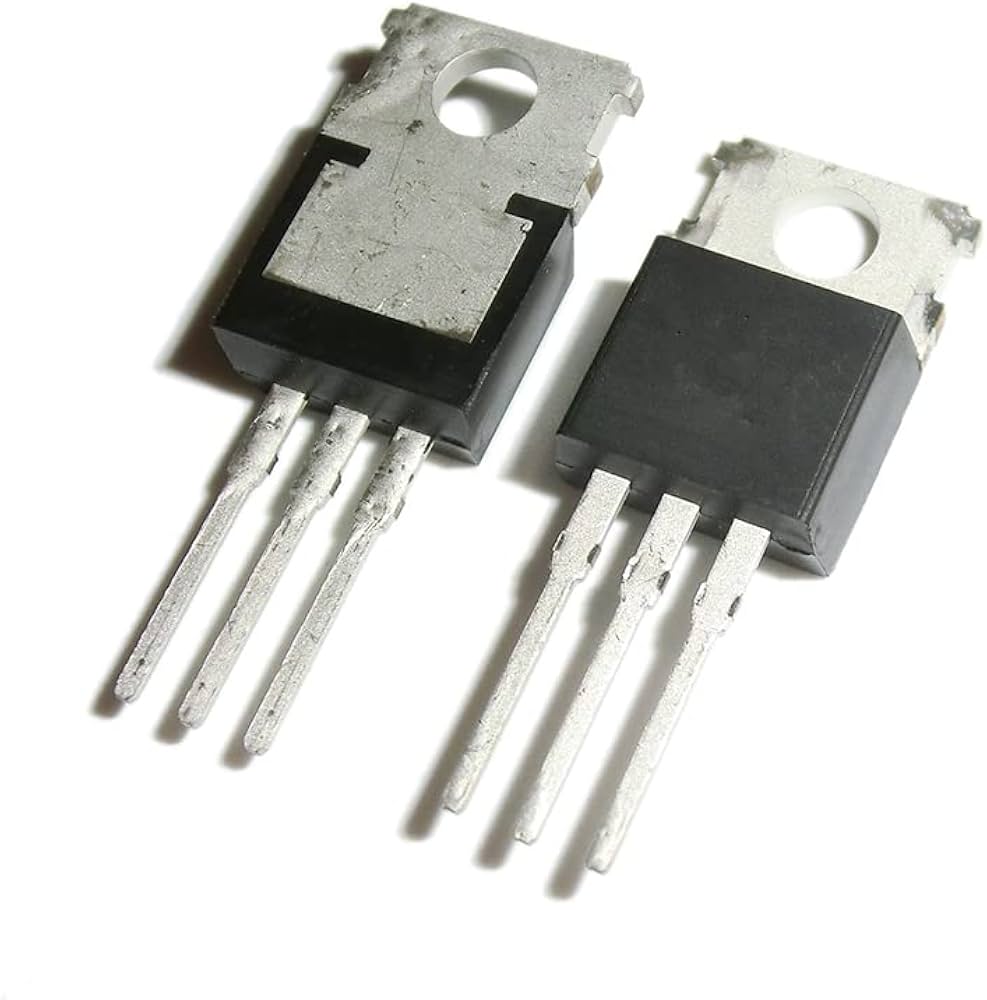

The FCP190N60 is an N-Channel MOSFET from On Semiconductor's SUPERFET II family, designed for high-voltage switching power applications. It utilizes charge balance technology to achieve low on-resistance (199 mOhm max) and low gate charge (57 nC typical).
The device is rated for a drain-source voltage of 600V (650V at 150°C junction temperature) and can handle a continuous drain current of 20.2A at 25°C case temperature. It comes in a TO-220-3 through-hole package.
Typical applications include AC-DC power supplies, PFC circuits, server and telecom power, and TV power systems. The MOSFET is 100% avalanche tested and RoHS compliant.
The drain-source voltage (Vdss) is 600V with a typical value of 650V at 150°C junction temperature.
The continuous drain current is 20.2A at 25°C case temperature and 12.7A at 100°C.
The package is TO-220-3 (through-hole).
The operating junction temperature range is -55°C to 150°C.
Yes, the FCP190N60 is RoHS3 compliant as stated in the datasheet.
The typical gate charge is 57 nC at a gate-source voltage of 10V.
