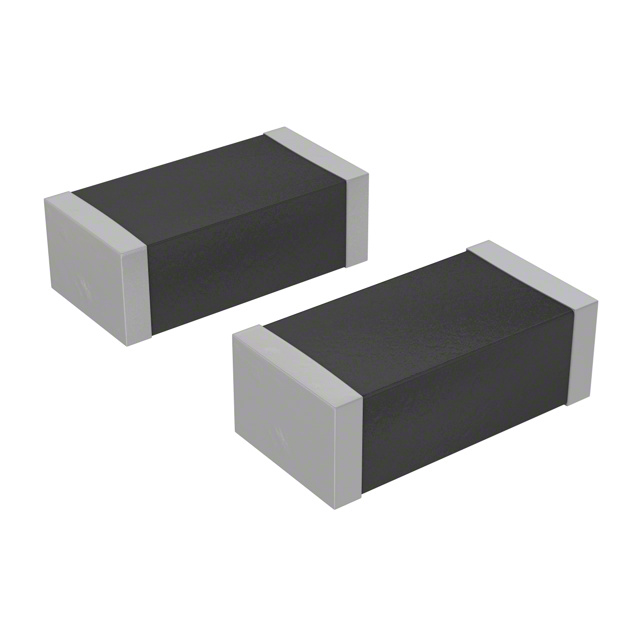

FCP1206H103J-H2 Film capacitor, 10000 pF, 50 Vdc, ±5% tolerance, PPS dielectric, 1206 SMD package.
Mfr Part #:

FCP1206H103J-H2

Available from 2 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
Film capacitor, 10000 pF, 50 Vdc, ±5% tolerance, PPS dielectric, 1206 SMD package.
✓ Total Stock: 645 pcs
$ Price Range: $0.31 - $1.04

FCP1206H103J-H2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
445 pcs
On Request
445 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FCP1206H103J-H2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Lead Style
Length
Mounting Type
Operating Temperature
Tape & Reel
Termination
Termination Finish
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

FCP1206H103J-H2 Description

Short technical summary and product information.

The FCP1206H103J-H2 is a surface mount film capacitor from Cornell Dubilier Electronics, part of the FCP series. It features a stacked metallized polyphenylene sulfide (PPS) dielectric, offering stable capacitance and dissipation factor over a wide temperature range.



Key electrical specifications include a capacitance of 10000 pF (0.01 µF), a DC voltage rating of 50 V, and a capacitance tolerance of ±5%. The dissipation factor is 0.6% maximum at 1 kHz, and insulation resistance is 3000 MΩ minimum. The operating temperature range is -55°C to +125°C.



This capacitor is designed for high frequency and switching applications, benefiting from the excellent high frequency performance of the PPS film. It is housed in a 1206 (3216 Metric) SMD package with lead-free Sn-Ag-Cu solder terminations, suitable for reflow soldering processes.

FCP1206H103J-H2 Quick Information

Product Type: Film Capacitor
Series: FCP
Canonical Name: FCP1206H103J-H2 Film Capacitor, 10000 pF, 50 Vdc, ±5%, PPS, 1206
Subcategory: Surface Mount Film Capacitor

FCP1206H103J-H2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead free terminations (Sn-Ag-Cu)

FCP1206H103J-H2 Estimated Pricing

Qty Low High
1+ $1.04 $1.04
10+ $0.67 $0.67
50+ $0.52 $0.52
100+ $0.47 $0.47
500+ $0.40 $0.40
1,000+ $0.37 $0.37
3,000+ $0.34 $0.34
6,000+ $0.33 $0.33
9,000+ $0.32 $0.32
15,000+ $0.32 $0.32
21,000+ $0.31 $0.31
30,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

FCP1206H103J-H2 Features

  • 10000 pF capacitance with ±5% tolerance.
  • Rated for 50 Vdc operation.
  • PPS dielectric for stable high frequency performance.
  • Surface mount 1206 package for reflow soldering.
  • Operating temperature range -55°C to +125°C.

FCP1206H103J-H2 Applications

  • High frequency filtering and coupling circuits.
  • Switching power supply snubber networks.
  • Timing and oscillator circuits requiring stable capacitance.
  • Wireless communication and instrumentation equipment.

FCP1206H103J-H2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the FCP1206H103J-H2?

The capacitance is 10000 pF (0.01 µF).

What is the voltage rating of this capacitor?

The DC voltage rating is 50 V.

What dielectric material is used?

The dielectric material is Polyphenylene Sulfide (PPS).

What is the capacitance tolerance?

The tolerance is ±5%.

What is the package size?

The package is 1206 (3216 Metric).

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is this capacitor RoHS compliant?

The datasheet states lead-free terminations (Sn-Ag-Cu), indicating RoHS compliance.
