| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor (tan δ) | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

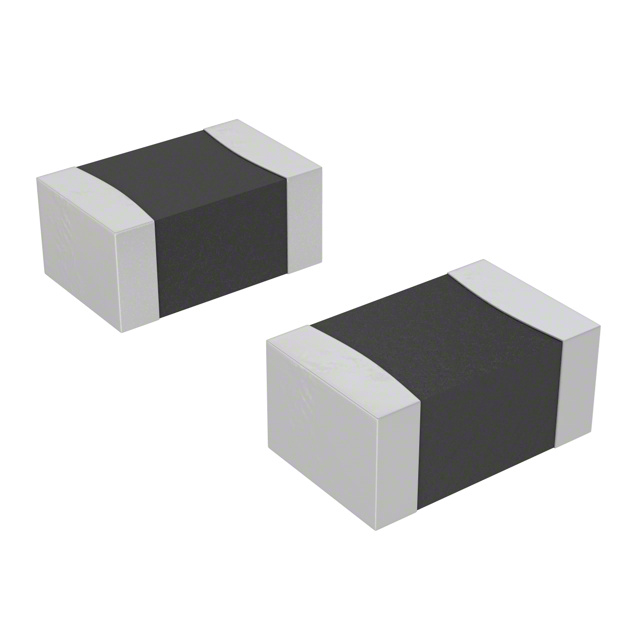

The FCP0805H331J-J1 is a surface mount film capacitor from Cornell Dubilier Electronics, part of the Type FCP series. It offers a capacitance of 330 pF with a tolerance of ±5% and a rated DC voltage of 50V. The capacitor utilizes a stacked metallized polyphenylene sulfide (PPS) film dielectric, providing stable capacitance and dissipation factor over a wide temperature range from -55°C to +125°C. This makes it suitable for high frequency and switching applications. The component is housed in an 0805 (2012 Metric) package with solder pad terminations, and is supplied on tape and reel for automated assembly. Key electrical characteristics include a maximum dissipation factor of 0.6% at 1 kHz, minimum insulation resistance of 3000 MΩ, and dielectric strength of 150% of rated voltage for 60 seconds. The terminations are lead-free with Sn-Ag-Cu solder finish, compliant with RoHS3 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.43 | $0.43 |
| 50+ | $0.33 | $0.33 |
| 100+ | $0.29 | $0.29 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.22 | $0.22 |
| 3,000+ | $0.28 | $0.28 |
| 6,000+ | $0.27 | $0.27 |
| 9,000+ | $0.27 | $0.27 |
| 15,000+ | $0.26 | $0.26 |
| 21,000+ | $0.25 | $0.25 |
| 30,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
330 pF.
50V DC.
Polyphenylene Sulfide (PPS).
±5%.
0805 (2012 Metric).
-55°C to +125°C.
0.6% maximum at 1 kHz.
