| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

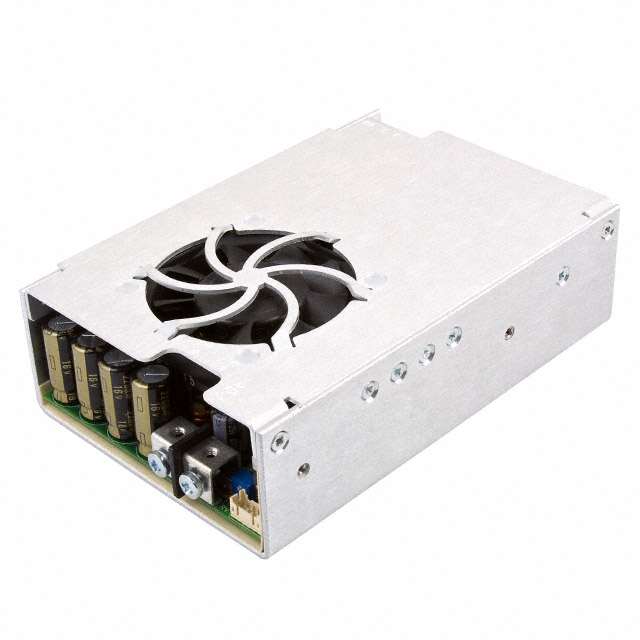

The XP Power FCM400PS28 is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a single 28V output with a maximum current of 14.2A, delivering a total of 400W of power.
Key electrical specifications include an efficiency of 87% and an isolation voltage of 4kV. The converter operates with a wide AC input voltage range from 80VAC to 275VAC. It is designed for chassis mounting and features adjustable output, remote on/off, remote sense, and a standby output.
The operating temperature range is from -10°C to 70°C with derating. The physical dimensions are 152.4mm in length, 101.6mm in width, and 49.0mm in height.
This model complies with RoHS3 standards and is rated for Moisture Sensitivity Level 1. It meets safety standard 62368-1.
The nominal output voltage is 28V.
The maximum output current is 14.2A.
The total power output is 400W.
The input voltage range is 80VAC to 275VAC.
The efficiency is 87%.
The operating temperature range is -10°C to 70°C (with derating).
The dimensions are 152.4mm in length, 101.6mm in width, and 49.0mm in height.
