| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FCI7N60 is a high-voltage N-Channel MOSFET from ON Semiconductor, designed for efficient switching in power conversion applications. It offers a drain-source voltage rating of 600V and a continuous drain current of 7A at case temperature.
Key electrical characteristics include a maximum on-resistance of 600 milliohm at 3.5A and 10V gate drive, a gate charge of 30 nC, and an input capacitance of 920 pF. The gate threshold voltage is 5V maximum, and the maximum gate-source voltage is ±30V. Power dissipation is rated at 83W.

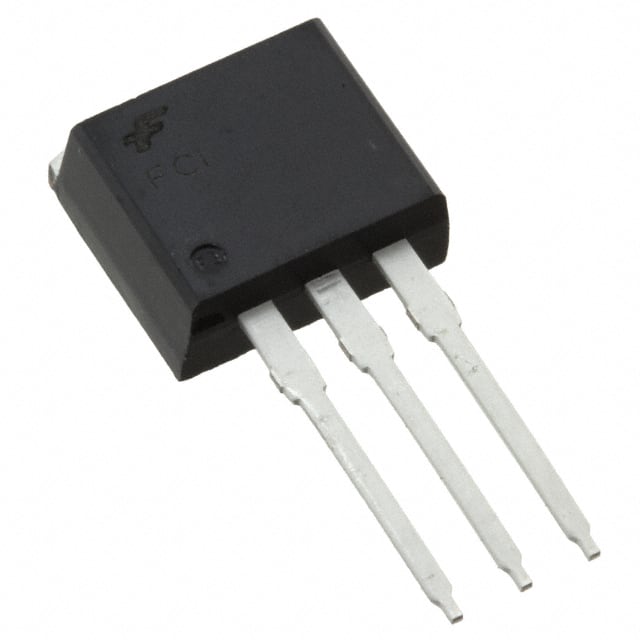

The device is housed in a through-hole I2PAK (TO-262) package with long leads, suitable for efficient thermal management. It operates over a junction temperature range of -55°C to 150°C. The part is listed as RoHS3 compliant and has an MSL rating of 1 (unlimited).
Typical applications include power supplies, DC-DC converters, motor drives, and inverter circuits where high-voltage switching and low on-resistance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 10+ | $2.63 | $2.63 |
| 50+ | $2.04 | $2.04 |
| 100+ | $1.85 | $1.85 |
| 500+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V.
Through-hole I2PAK (TO-262) with long leads.
-55°C to 150°C (junction).
It is listed as RoHS3 Compliant, but this is unverified.
7A at case temperature.
Maximum 5V at 250µA drain current.
600 milliohm maximum at 3.5A and 10V gate drive.
