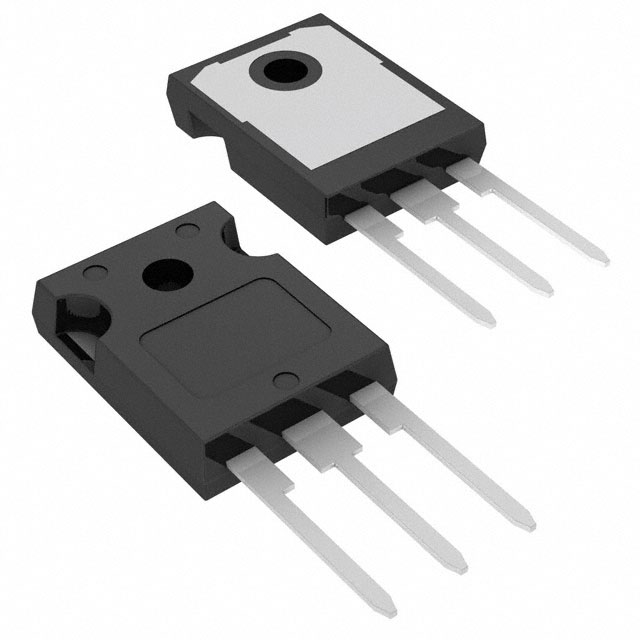

The FCH47N60F-F133 is an N-Channel MOSFET from onsemi, part of the SUPERFET and FRFET families. It is designed for high-voltage switching power applications, offering a drain-source voltage rating of 600V and a continuous drain current of 47A at 25°C. The device features a maximum on-resistance of 73mΩ at Vgs=10V and Id=47A, with a typical on-resistance of 58mΩ, enabling efficient power conversion.
This MOSFET is built using onsemi's charge balance technology, which provides low on-resistance and reduced gate charge. The total gate charge is typically 210nC, and the effective output capacitance is 420pF, contributing to improved switching performance. The device is 100% avalanche tested, with a single pulsed avalanche energy rating of 1800mJ, making it suitable for rugged applications.
The FCH47N60F-F133 is housed in a TO-247-3 through-hole package, which facilitates heat dissipation. It has a maximum power dissipation of 417W at Tc=25°C and a junction-to-case thermal resistance of 0.3°C/W. The operating junction temperature range is -55°C to 150°C.
This MOSFET is RoHS compliant and lead-free, making it suitable for environmentally conscious designs. It is commonly used in AC-DC power supplies, solar inverters, and other industrial power applications.
