| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,370 pcs
|
2370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,540 pcs
|
1540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FCH023N65S3-F155 is a high-voltage N-Channel power MOSFET from onsemi's SUPERFET III series, designed for efficient power conversion in demanding applications. It features a maximum drain-source voltage of 650V (700V at Tj=150°C) and a continuous drain current of 75A at 25°C, enabling high-power handling. The device offers ultra-low on-resistance with a typical Rds(on) of 19.5 mOhm and a maximum of 23 mOhm at 10V gate drive, minimizing conduction losses. Its low gate charge (222 nC) and low effective output capacitance (1980 pF) enhance switching performance, making it suitable for high-frequency topologies. The MOSFET is 100% avalanche tested with a single pulse avalanche energy rating of 2025 mJ, ensuring robustness in rugged environments. Packaged in a TO-247-3 through-hole case with long leads, it supports easy mounting and thermal management. Typical applications include telecom and server power supplies, industrial power systems, UPS, and solar inverters.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.85 | $14.85 |
| 10+ | $9.17 | $9.17 |
| 120+ | $8.16 | $8.16 |
| 510+ | $8.08 | $8.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum drain-source voltage (Vdss) is 650V, and 700V at Tj=150°C.

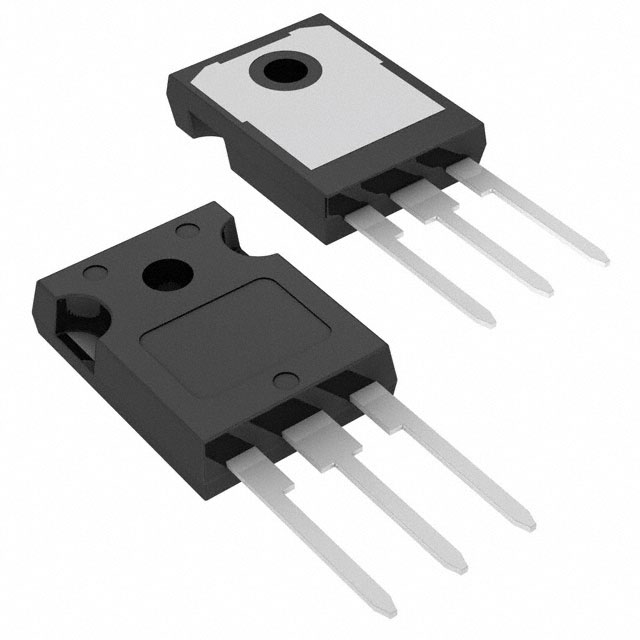

It comes in a TO-247-3 through-hole package with long leads.
Junction temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant and Pb-Free, verified by datasheet.
Typical Rds(on) is 19.5 mOhm, maximum 23 mOhm at 37.5A, 10V.
Maximum gate charge is 222 nC at Vgs=10V.
Maximum single pulse avalanche energy (EAS) is 2025 mJ at Ias=15A, starting Tj=25°C.
