| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

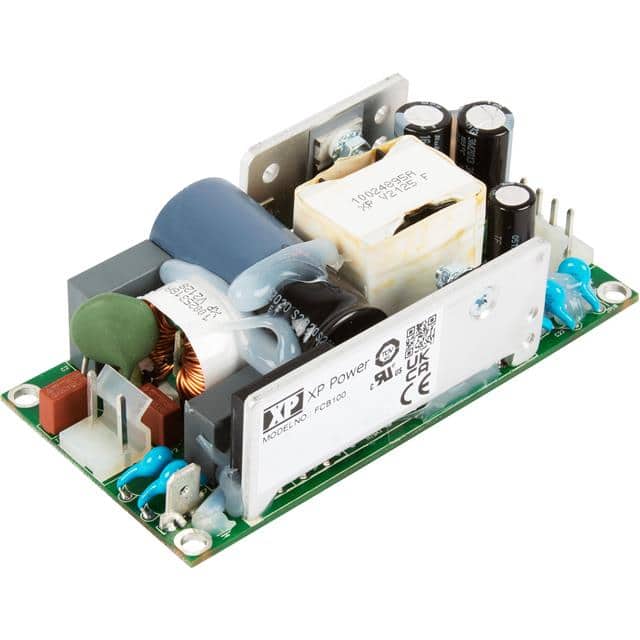

The XP Power FCB100US12 is an open frame AC-DC power supply designed for versatile applications including medical devices (BF), industrial electronics, ITE, and household use. It offers an 80W convection-cooled rating and a 100W fan-cooled rating, with a regulated single output of 12VDC.
Key electrical specifications include a wide input voltage range of 80 to 264VAC and an efficiency of up to 87%. The unit provides protection against short circuit, overvoltage, and overload conditions. It operates within a temperature range of -25°C to 70°C with derating.
With a compact footprint of 4.00" x 2.00" x 1.25" (101.6 x 50.8 x 31.8mm), the FCB100US12 is suitable for chassis mounting. It meets Class B conducted and radiated emissions standards and is compliant with safety and EMC certifications for global use, including UL, CE, and CB approvals.
This power supply is ideal for system designers needing easy integration into various applications across multiple end markets, offering reliability and global compliance.
80 to 264 VAC.
12 VDC.
-25°C to 70°C with derating.
Overvoltage (110-150%), overload (110-175%), short circuit (hiccup mode), and overtemperature protection.
4000 VAC input to output (2xMOPP), 1500 VAC input to ground (1xMOPP), 1500 VAC output to ground (1xMOPP).
101.6mm x 50.8mm x 31.8mm (4.00" x 2.00" x 1.25").
87% typical.
