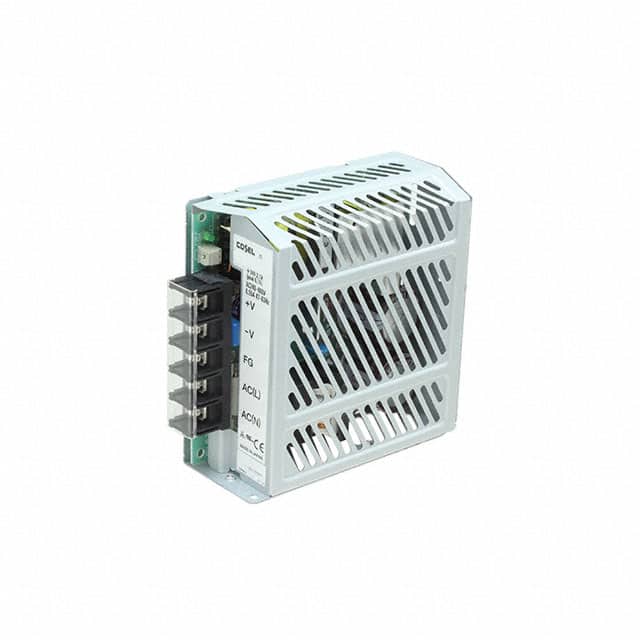

The Cosel FCA75F-24 is an enclosed AC/DC power supply designed for reliable operation in commercial and industrial environments. It delivers a stable 24V output with a nominal current of 3.1A and a peak current capability of 6.7A, providing up to 75W of power. The unit accepts a wide AC input voltage range from 187 to 528V, with an efficiency of up to 82% at 240V input.
Key electrical specifications include line and load regulation, ripple, and start-up time, ensuring consistent power delivery. The power supply features overcurrent and overvoltage protection for enhanced safety and reliability. It is designed for chassis mounting and operates via convection cooling.
With agency approvals including CE, cURus, and TUV, the FCA75F-24 is suitable for various ITE (Commercial) applications. It also meets FCC-A, CISPR11-A, and EN55011-A standards for conducted noise.
The input voltage range is 187-528 VAC at 47-63Hz, and also supports 265-746 VDC.
Output voltage is 24V nominal. Output current is 3.1A nominal (75W) with a peak of 6.7A (160W).
Operating temperature range is -10 to 60°C with derating.
Typical efficiency is 82% at 240VAC input.
The converter is chassis mount, enclosed. Dimensions are 50 x 125 x 124 mm (WxHxD).
Agency approvals include UL60950-1, C-UL, and EN62368-1.
Yes, overcurrent protection works over 105% of peak current and recovers automatically.
