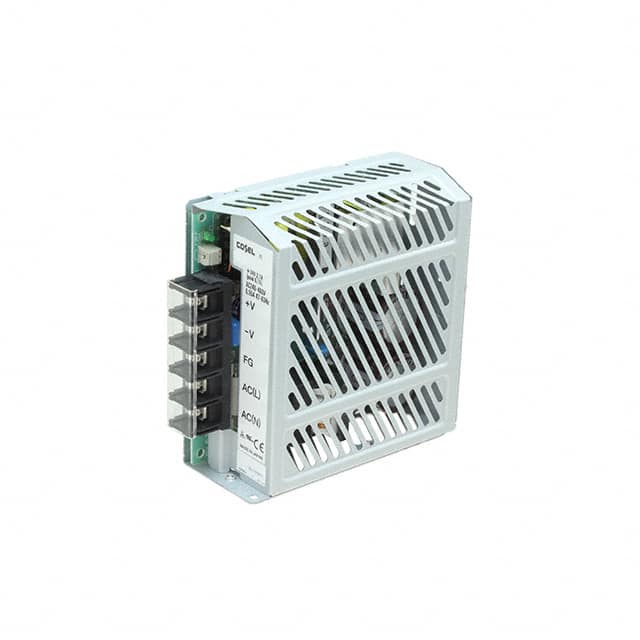

The Cosel FCA50F-24 is an enclosed AC-DC power supply designed for ITE (Commercial) applications. It delivers a stable 24V output with a continuous current of 2.1A and a maximum output wattage of 50W, with a peak capability of 160W.
This power supply operates from a wide AC input voltage range of 187-528V or a DC input range of 265-746V. It boasts a typical efficiency of 82% at 240V AC input. Key electrical specifications include line regulation of 96mV max and load regulation of 150mV max (0-2.1A).
Designed for reliability, the FCA50F-24 includes overcurrent and overvoltage protection. It operates within a temperature range of -10°C to 60°C (with derating) and features convection cooling. The unit is chassis mounted and has dimensions of 150.0mm x 127.0mm x 125.0mm.
The FCA50F-24 provides a nominal 24V output at 2.1A, with a peak capacity of 160W and 6.7A.
Yes, the unit accepts DC input voltages ranging from 265V to 746V in addition to its AC input range.
The converter offers 3000VAC isolation between input and output, 2000VAC between input and frame ground, and 500VAC between output and frame ground.
Overcurrent protection activates when the load exceeds 105% of the peak current and automatically recovers once the fault condition clears.
The unit operates continuously from -10°C to 60°C, with extended operation up to 70°C permitted when applying appropriate power derating.
The power supply complies with UL60950-1, C-UL, and EN62368-1 safety standards, and meets FCC Class A, CISPR11 Class A, and EN55011 Class A conducted noise requirements.
The enclosed chassis mounts securely to a panel or rack and relies on natural convection for thermal management without active fans.
