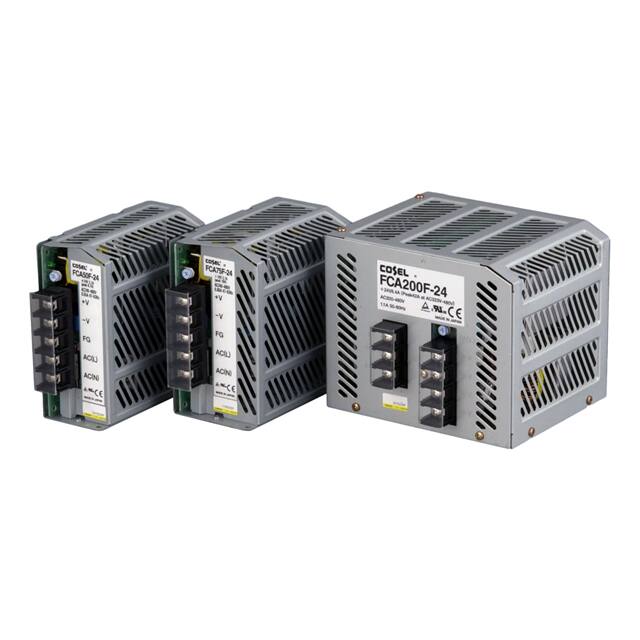

The Cosel FCA200F-24 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 24V DC output with a nominal current of 8.4A and a peak current capability of 6.7A, delivering up to 200W of power. The unit accepts a wide AC input voltage range from 187 to 528V or a DC input from 265 to 746V.
Key electrical specifications include an efficiency of 81% at 240V AC input and a typical inrush current of 25A at 240V AC. The power supply features overcurrent protection that activates above 105% of peak current and overvoltage protection at 115-140% of rating. Isolation voltages are rated at 3000 VAC (Input-Output), 2000 VAC (Input-FG), and 500 VAC (Output-FG).
This chassis mount unit operates within an ambient temperature range of -10°C to +60°C with derating and has a convection cooling method. Its dimensions are 150.0mm x 127.0mm x 125.0mm. The FCA200F-24 is approved by CE, cURus, and TUV, and complies with FCC-A, CISPR11-A, and EN55011-A conducted noise standards.
The AC input range is 187-528 VAC at 47-63 Hz. The DC input range is 265-746 VDC.
The nominal output is 24V at 8.4A, providing 200W of power. The output voltage can be adjusted from 21.6V to 26.4V.
The operating temperature range is -10°C to +60°C with derating.
It includes overcurrent protection that works over 105% of peak current with automatic recovery, and overvoltage protection that works at 115-140% of rating.
Efficiency is 82% typical at 240 VAC input and 78% typical at 480 VAC input.
Isolation voltage is 3000 VAC between input and output, 2000 VAC between input and FG, and 500 VAC between output and FG.
The case size is 50 x 125 x 124 mm and the maximum weight is 640g.
