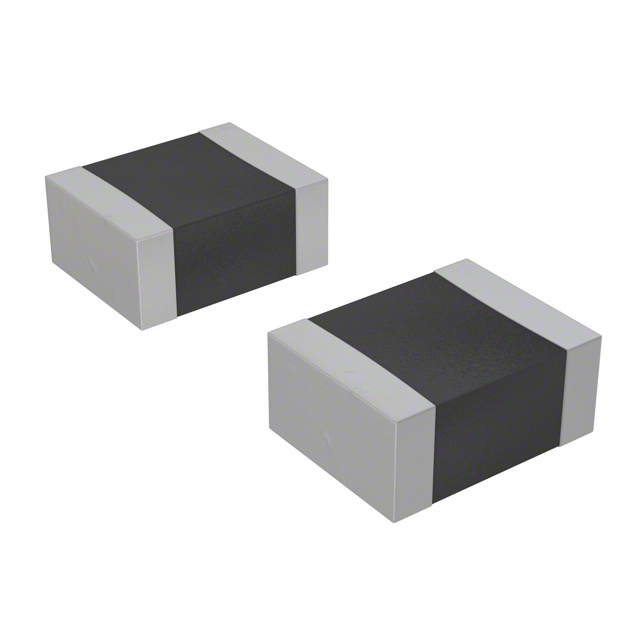

FCA1210C105M-G2 This is a 1 µF, ±20% tolerance, 16 VDC acrylic metallized film capacitor in a 1210 (3225 Metric) surface mount package. It features low ESR, non-polarized construction, and no piezoelectric effect.
Mfr Part #:

FCA1210C105M-G2

Available from 1 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
This is a 1 µF, ±20% tolerance, 16 VDC acrylic metallized film capacitor in a 1210 (3225 Metric) surface mount package. It features low ESR, non-polarized construction, and no piezoelectric effect.
✓ Total Stock: 1,493 pcs
$ Price Range: $0.69

FCA1210C105M-G2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,493 pcs
On Request
1493 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FCA1210C105M-G2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Features
Height
Lead Style
Length
Mounting Type
Operating Temperature
Polarization
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

FCA1210C105M-G2 Description

Short technical summary and product information.

The FCA1210C105M-G2 is a Type FCA acrylic stacked metallized film capacitor from Cornell Dubilier. It offers a nominal capacitance of 1 µF with ±20% tolerance and a rated DC voltage of 16 V. The component is housed in a standard 1210 (3225 Metric) surface mount package with solder pad terminations.



This capacitor is constructed with non-inductive stacked layers of metallized acrylic resin film and lead-free solder plated copper alloy terminals. Key electrical characteristics include a dissipation factor of 0.015 at 1 kHz and +20°C, low ESR, and an insulation resistance greater than 300 MΩ·µF after 1 minute at 10 Vdc. It is non-polarized and non-magnetic, with no piezoelectric effect.



Designed for general purpose applications, the FCA1210C105M-G2 operates over a temperature range of -40°C to +85°C. It is suitable for filtering, decoupling, noise attenuation, and audio coupling circuits where low distortion is desired.

FCA1210C105M-G2 Quick Information

Product Type: Film Capacitor
Series: FCA
Canonical Name: Cornell Dubilier FCA1210C105M-G2 Acrylic Metallized Film Capacitor, 1 µF, 16 VDC, 1210
Subcategory: Acrylic Metallized Film Capacitor

FCA1210C105M-G2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 4
REACH Status: REACH Unaffected
Lead Free: Lead Free

FCA1210C105M-G2 Estimated Pricing

Qty Low High
6,000+ $0.69 $0.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

FCA1210C105M-G2 Features

  • 1 µF capacitance with ±20% tolerance.
  • Rated for 16 VDC and 12 Vrms AC.
  • Low ESR acrylic metallized film construction.
  • Non-polarized and non-magnetic design.
  • Surface mount 1210 (3225 Metric) package.

FCA1210C105M-G2 Applications

  • DC power bus noise attenuation.
  • Ripple filtering in DC-DC converters.
  • Audio coupling for distortion free sound.
  • General purpose filtering and decoupling.

FCA1210C105M-G2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the FCA1210C105M-G2?

The nominal capacitance is 1 µF with a tolerance of ±20% measured at 1 kHz and +20°C.

What is the rated voltage of this capacitor?

The rated DC voltage is 16 V and the AC voltage rating is 12 Vrms.

What is the dielectric material used?

The dielectric material is acrylic, metallized.

What is the package size and mounting type?

The package is 1210 (3225 Metric) and the mounting type is surface mount with solder pad terminations.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is this capacitor polarized?

No, it is non-polarized.

Does this capacitor exhibit a piezoelectric effect?

No, it has no piezoelectric effect.
