| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 1625 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

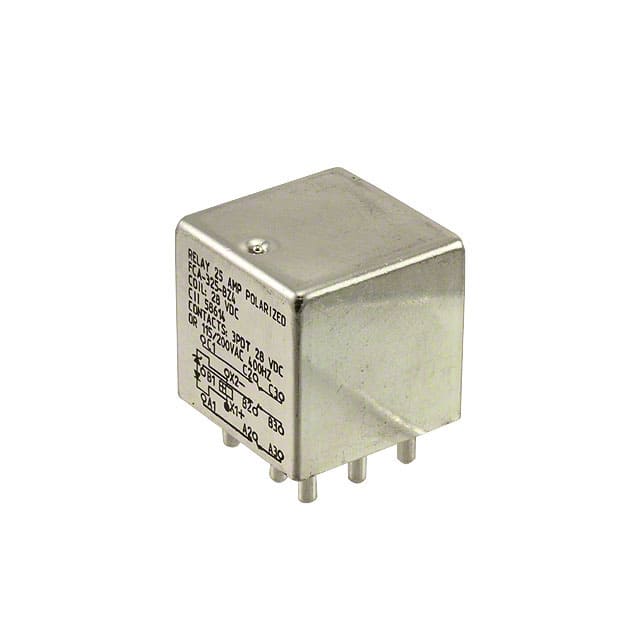

This TE Connectivity FCA-325-BZ4 is a general purpose relay featuring a 3PDT (3 Form C) contact configuration. It is rated for a continuous current of 25A and has a switching voltage capability of up to 115VAC or 28VDC.
The relay operates with a coil voltage of 28VDC, requiring a must-operate voltage of 18VDC and a must-release voltage of 1.5VDC. Both the operate and release times are specified at 15ms.
Designed for through-hole mounting with PC pin termination, this relay is sealed hermetically. It operates within a wide temperature range of -70°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating voltage is 18 VDC.
The contact rating is 25 A.
The coil voltage is 28 VDC.
It has a 3PDT contact form.
The operating temperature range is -70°C to 125°C.
