| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,033 pcs
|
1033 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Gate Charge | |
| Interface | |
| Mounting Type | |
| Number of Channels | |
| Number of Outputs | |
| Output Configuration | |
| Output Type | |
| Power Dissipation | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Technology | |
| Voltage |
The Panasonic Electronic Components FC6B21150L1 is a dual N-channel MOSFET belonging to the Power Distribution Switches, Load Drivers category. This component is designed for efficient power management in various electronic systems.
Key electrical specifications include a drain-source breakdown voltage of 12V and a continuous drain current of 8A. The device offers a low drain-source on-resistance (Rds On) of 10 mOhms, ensuring minimal power loss during operation. It operates with a gate-source voltage range of -10.5V to +10.5V and features a gate charge of 26 nC.
This MOSFET is configured as a dual N-channel type with an enhancement mode channel. It is suitable for low-side output configurations and features an On/Off interface. The operating temperature range is from -55°C to +150°C, providing robustness in demanding environments.

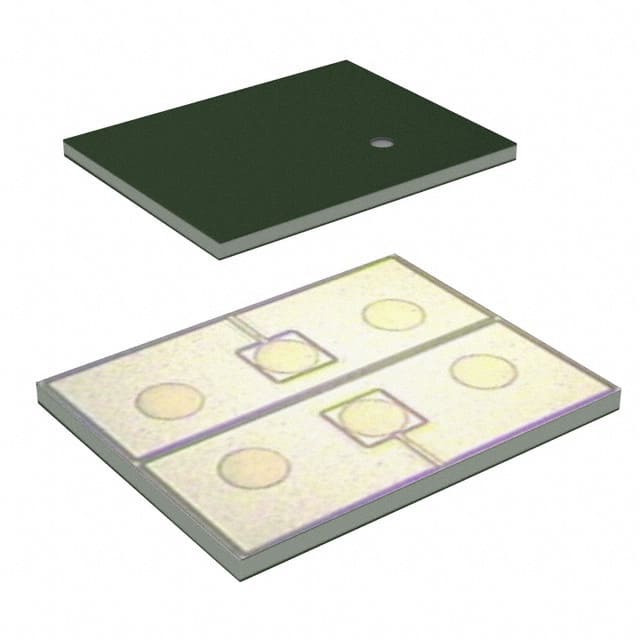

The FC6B21150L1 comes in a 6-SMD, No Lead package and is designed for surface mount applications. Its compact size and surface-mount capability make it ideal for integration into space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The continuous drain current is 8A.
The drain-source breakdown voltage is 12V.
The Rds On (typical) is 10 mOhms.
The operating temperature range is -55°C to +150°C.
The FC6B21150L1 is supplied in a 6-SMD, No Lead package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
