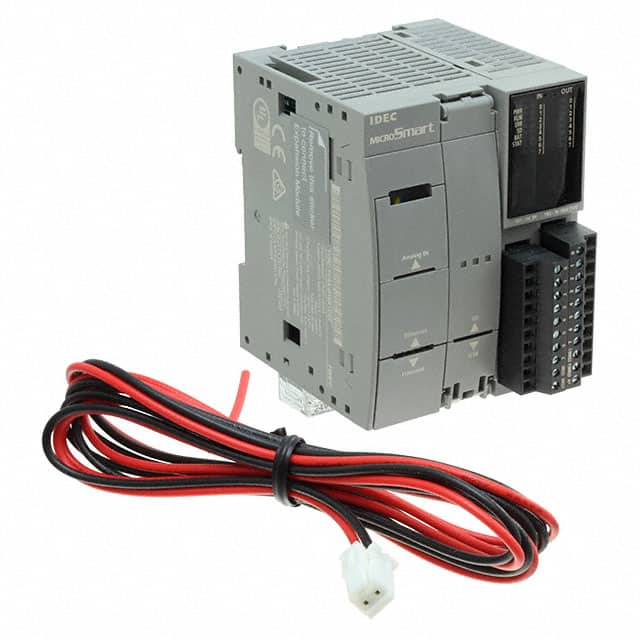

This IDEC MicroSmart FC6A Plus PLC CPU Module, part number FC6A-D16R1CEE, is designed for advanced control applications. It operates with a rated power voltage of 24V DC and an allowable range of 20.4 to 28.8V DC. The module offers 8 digital inputs and 8 relay outputs, supporting a maximum input frequency of 100kHz for high-speed counting and a maximum output frequency of 100kHz for pulse output.
Key features include dual Ethernet ports, iOS and Android WindEDIT app compatibility, and Bluetooth communication. The module has a memory size of 800KB and can be expanded with up to 7 additional modules. It is designed for DIN rail mounting and has a corrosion-free design.
Environmental specifications include an operating temperature range of -25 to +65°C and a storage temperature range of -25 to +70°C. It operates within a relative humidity level of 10 to 95% (non-condensing) and at altitudes up to 2,000m. The pollution degree is rated at 2 (IEC 60664-1).
Electrical specifications include a maximum power consumption of 2.88W at 24V DC and an inrush current of 35A maximum. It supports a momentary power interruption of 10ms. Dielectric strength tests show 500V AC between various terminals and 2,300V AC between power and relay output terminals, with insulation resistance of 100MΩ or higher.
The rated power voltage is 24V DC.
The operating temperature range is -25 to +65°C.
It has 8 digital inputs and 8 relay outputs.
It supports Ethernet and USB communication.
The maximum input frequency for high-speed counting is 100kHz.
The mounting type is DIN Rail.
