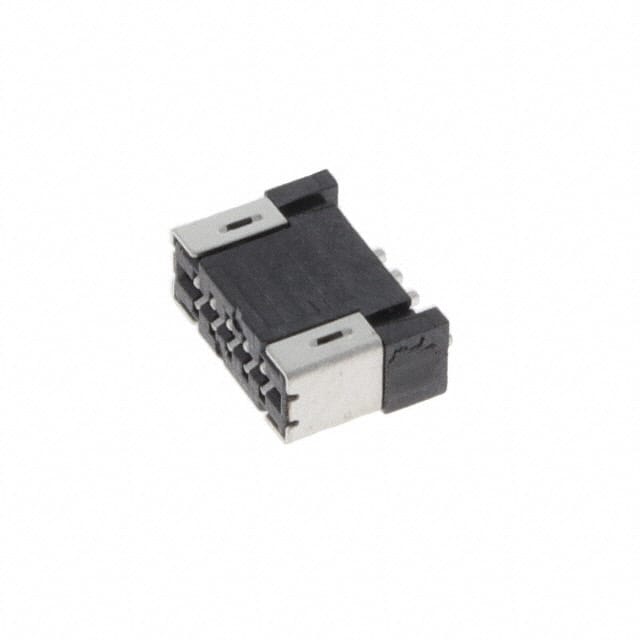

FC1-05-02-T-WT-TR Samtec FC1-05-02-T-WT-TR is a 5 position, 1mm pitch, right angle surface mount FFC connector with tin plated phosphor bronze contacts and a weld tab termination.
Mfr Part #:

FC1-05-02-T-WT-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FC1-05-02-T-WT-TR is a 5 position, 1mm pitch, right angle surface mount FFC connector with tin plated phosphor bronze contacts and a weld tab termination.
✓ Total Stock: 130 pcs
$ Price Range: $0.78 - $1.53

FC1-05-02-T-WT-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FC1-05-02-T-WT-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Housing Material
Lead Spacing
Lead Style
Mating Cycles
Mounting Type
Number of Positions
Operating Temperature
Packaging Type
Pitch
SMT Lead Coplanarity
Tape & Reel
Termination
View Similar Products (0)

FC1-05-02-T-WT-TR Description

Short technical summary and product information.

The Samtec FC1-05-02-T-WT-TR is a 5 position, 1.00mm pitch FFC connector designed for surface mount, right angle mounting. It features tin plated phosphor bronze contacts on both top and bottom sides, housed in a liquid crystal polymer (LCP) insulator. The connector includes a weld tab (WT) for secure solder retention and is rated for 25 mating cycles when used with a compatible FJ jumper. The operating temperature range is -55°C to +105°C, and it supports FFC cable thickness of 0.30mm. This connector is supplied in tape and reel packaging and is lead-free solderable.

FC1-05-02-T-WT-TR Quick Information

Product Type: FFC Connector
Series: FC1
Canonical Name: Samtec FC1 Series 5 Position 1mm Pitch Right Angle Surface Mount FFC Connector with Tin Plating and Weld Tab
Subcategory: FFC, FPC (Flat Flexible) Connector Assemblies

FC1-05-02-T-WT-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FC1-05-02-T-WT-TR Estimated Pricing

Qty Low High
1+ $1.53 $1.53
50+ $1.46 $1.46
100+ $1.30 $1.30
500+ $1.24 $1.24
1,375+ $1.08 $1.08
2,750+ $1.01 $1.01
9,625+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

FC1-05-02-T-WT-TR Features

  • 5 position 1.00mm pitch FFC connector.
  • Right angle surface mount termination.
  • Tin plated phosphor bronze contacts.
  • Weld tab for solder retention.
  • Operating temperature -55°C to +105°C.

FC1-05-02-T-WT-TR Applications

  • Used in flat flexible cable interconnects.
  • Suitable for compact electronic assemblies.
  • Ideal for high-density PCB designs.
  • Common in consumer and industrial electronics.

FC1-05-02-T-WT-TR FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the FC1-05-02-T-WT-TR have?

5 positions.

What is the pitch of this connector?

1.00mm (0.039 inches).

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to +105°C.

What is the contact material and plating?

Phosphor bronze contacts with tin plating.

What is the maximum mating cycles with FJ jumper?

25 cycles.
