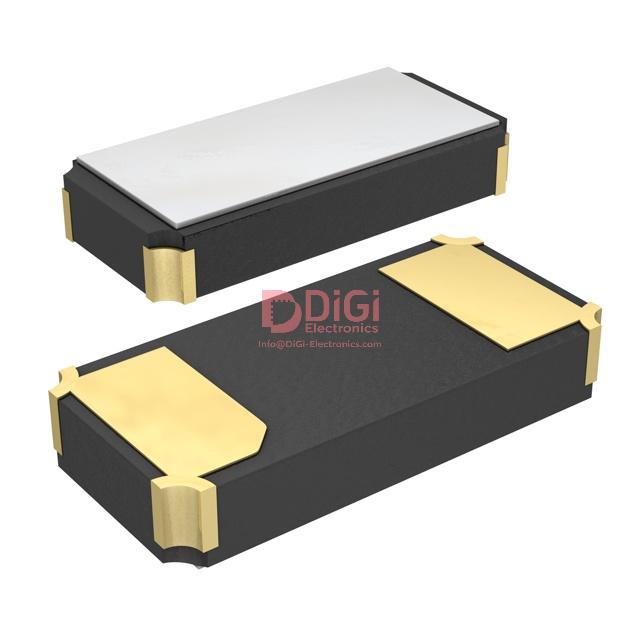

FC-13532.7680KA-A5 The Epson FC-13532.7680KA-A5 is a kHz Crystal (Tuning Fork) with a frequency of 32.768 kHz. It is designed for surface mount applications.
Mfr Part #:

FC-13532.7680KA-A5

Available from 1 distributors
Mfr Name: Epson
Epson
The Epson FC-13532.7680KA-A5 is a kHz Crystal (Tuning Fork) with a frequency of 32.768 kHz. It is designed for surface mount applications.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.56

FC-13532.7680KA-A5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FC-13532.7680KA-A5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Height
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Type
View Similar Products (0)

FC-13532.7680KA-A5 Description

Short technical summary and product information.

The Epson FC-13532.7680KA-A5 is a high-quality crystal resonator operating at a fundamental frequency of 32.768 kHz. It offers a frequency tolerance of ±20ppm and a load capacitance of 12.5pF, making it suitable for various timing applications.



This crystal features an Equivalent Series Resistance (ESR) of 70 kOhms and operates within a temperature range of -40°C to 85°C. The component is housed in a compact 2-SMD, No Lead package, designed for surface mounting.



With its specified dimensions of 3.20mm x 1.50mm and a height of 0.90mm, the FC-13532.7680KA-A5 is ideal for space-constrained electronic designs. Its robust construction and reliable performance make it a suitable choice for embedded systems and portable devices requiring accurate timekeeping.

FC-13532.7680KA-A5 Quick Information

Product Type: Crystal
Series: FC-135
Canonical Name: Epson FC-135 32.7680KA-A5 Crystal
Subcategory: Crystals

FC-13532.7680KA-A5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FC-13532.7680KA-A5 Estimated Pricing

Qty Low High
1+ $0.56 $0.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

FC-13532.7680KA-A5 Features

  • 32.768 kHz fundamental frequency.
  • ±20ppm frequency tolerance.
  • 12.5pF load capacitance.
  • Surface mount 2-SMD, No Lead package.
  • Wide operating temperature range.

FC-13532.7680KA-A5 Applications

  • Ideal for real-time clock circuits.
  • Suitable for low-power timing applications.
  • Used in embedded system designs.
  • Applicable in portable electronic devices.

FC-13532.7680KA-A5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of this crystal?

32.768 kHz.

What is the frequency tolerance?

±20 ppm.

What is the load capacitance?

12.5 pF.

What is the operating temperature range?

-40°C to 85°C.

What is the package type?

2-SMD, No Lead, Surface Mount.

What is the equivalent series resistance (ESR)?

70 kOhms.

What are the dimensions of this crystal?

3.20 mm x 1.50 mm with a seated height of 0.90 mm.
