CM315D32768DZYT
Citizen Finedevice
32.768 kHz tuning fork crystal with ±20ppm frequency tolerance and 7pF load capacitance. Surface mount package, RoHS compliant.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,332 pcs
|
5332 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,332 pcs
|
5332 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,523 pcs
|
1523 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

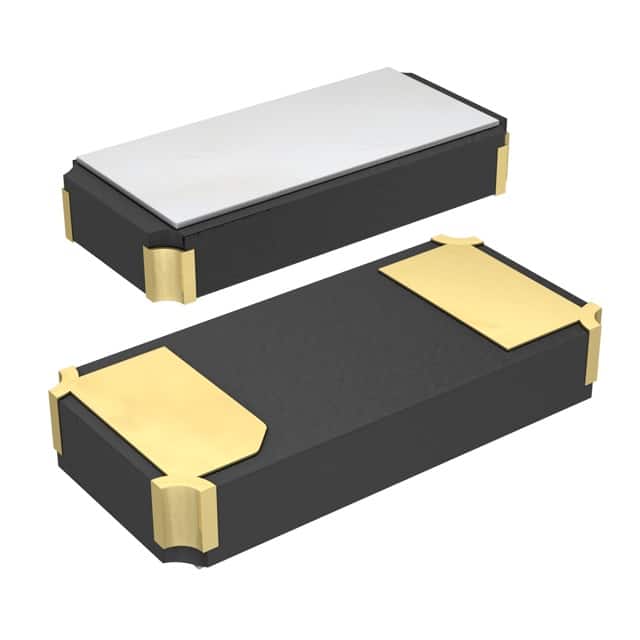

The Epson FC-135 32.7680KA-AG0 is a tuning fork crystal designed for precise timekeeping applications. Operating at a fundamental frequency of 32.768 kHz, this crystal offers a frequency tolerance of ±20ppm and a load capacitance of 7pF. The equivalent series resistance is 70 kΩ, ensuring stable oscillation in low-power circuits.
This crystal is housed in a compact surface-mount package (2-SMD, No Lead) measuring 3.20mm x 1.50mm x 0.90mm. It operates over a temperature range of -40°C to 85°C, making it suitable for industrial and consumer electronics.
Typical applications include real-time clocks (RTCs), battery-powered devices, and other timekeeping circuits where low power consumption and high accuracy are required. The tuning fork design provides excellent aging characteristics and frequency stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.42 | $0.42 |
| 25+ | $0.40 | $0.40 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.35 | $0.35 |
| 500+ | $0.34 | $0.34 |
| 1,000+ | $0.30 | $0.30 |
| 2,000+ | $0.29 | $0.29 |
| 5,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32.768 kHz
±20ppm
7pF
70 kΩ
-40°C to 85°C
2-SMD, No Lead
RoHS3 Compliant
