| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,231 pcs
|
6231 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

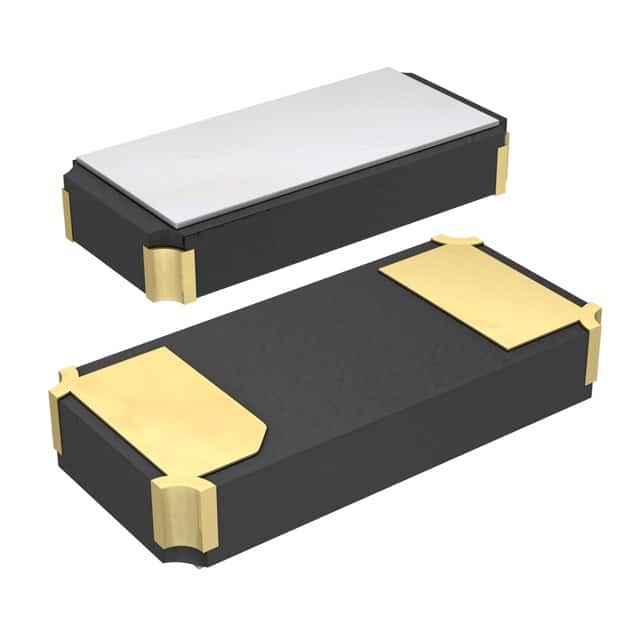

The Epson FC-135 32.7680KA-A5 is a kHz tuning fork crystal designed for precision timing applications. It operates at a fundamental frequency of 32.768 kHz with a load capacitance of 12.5pF, making it suitable for real-time clock circuits and low-frequency oscillators.
Key electrical specifications include a frequency tolerance of ±20ppm and an equivalent series resistance (ESR) of 70kΩ. The crystal operates in fundamental mode and is rated for an operating temperature range of -40°C to +85°C.
The component is housed in a compact 2-SMD, no lead package measuring 3.20mm x 1.50mm with a height of 0.90mm. It is designed for surface mount assembly, enabling space-efficient PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.37 | $0.37 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.34 | $0.34 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.31 | $0.31 |
| 3,000+ | $0.29 | $0.29 |
| 6,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 32.768 kHz.
The load capacitance is 12.5 pF.
The operating temperature range is -40°C to +85°C.
It uses a 2-SMD, no lead surface mount package.
The frequency tolerance is ±20 ppm.
The ESR is 70 kΩ.
