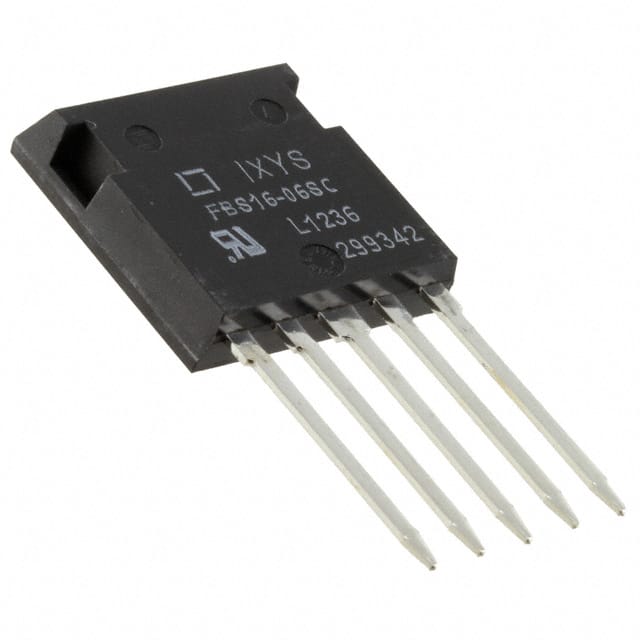

The FBS16-06SC is a Silicon Carbide Schottky bridge rectifier from IXYS. It features four SiC Schottky diodes in a single-phase bridge configuration. Key ratings include a maximum repetitive reverse voltage (VRRM) of 600V and an average rectified current (ID(AV)M) of 11A at TC=90°C. Each diode can handle 5A forward current (IFAV). The device offers a non-repetitive peak surge current (IFSM) of 20A.
Electrical characteristics: Forward voltage (VF) is typically 1.5V at 6A and 25°C, with a maximum of 1.8V. Reverse current (IR) is very low at 0.2mA max at 25°C and 0.05mA at 125°C. Junction capacitance (Cj) is 21pF typical at 400V. Total power dissipation per diode is 27W at TC=25°C. The device operates over a junction temperature range of -55°C to 175°C.
Package and mounting: The FBS16-06SC is housed in the ISOPLUS i4-PAC package, which features an isolated back surface for easy heatsinking. It is a through-hole mount package with a mounting force range of 20N to 120N when using a clip. The package provides low coupling capacitance (40pF) between pins and heatsink, and has a pin-to-pin distance of 1.7mm and pin-to-backside metal distance of 5.5mm. Weight is 9g.
Applications: This bridge rectifier is suitable for output rectification in high-end switched-mode power supplies and other high-frequency rectifier circuits. The SiC Schottky technology offers no reverse recovery, soft turn-off, and switching behavior independent of temperature, making it ideal for high-efficiency designs.
| Qty | Low | High |
|---|---|---|
| 25+ | $65.41 | $65.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 600V.
The average rectified current (ID(AV)M) is 11A at TC=90°C. Each diode can handle 5A forward current.
The forward voltage is typically 1.5V at 6A and 25°C, with a maximum of 1.8V.
No, as a Silicon Carbide Schottky diode, it has no reverse recovery charge, enabling soft turn-off and high-frequency operation.
It comes in the ISOPLUS i4-PAC through-hole package with an isolated back surface.
The maximum non-repetitive peak forward surge current (IFSM) is 20A at 25°C for a 10ms sine half-wave.
The operating junction temperature range is -55°C to 175°C.
