| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
283 pcs
|
283 pcs | On Request | 1 | On Request | On Request | 03+ | On Request | On Request | |
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Coil Current | |
| Coil Resistance | |
| Contact Material | |
| Failure Rate | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Storage Temperature |

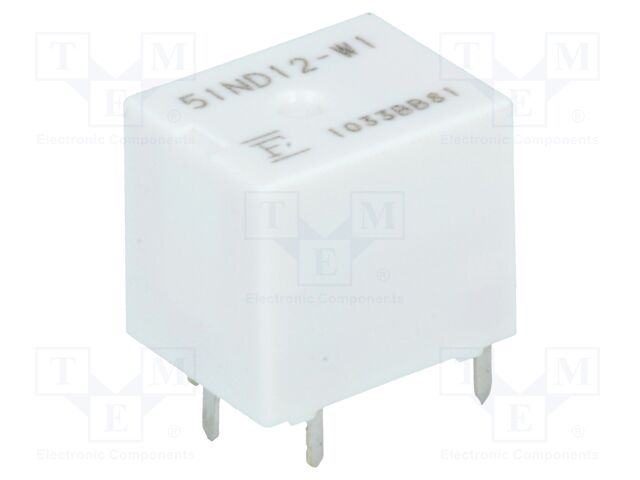

This FCL Components FBR51ND12-W1 is a miniature electromagnetic relay designed for various applications requiring reliable switching. It operates with a 12V DC coil voltage and can handle a maximum contact current of 35A, with a specific DC contact rating of 25A at 14V DC. The relay features an SPDT (Single Pole Double Throw) contact configuration, offering flexibility in circuit design.
With a coil resistance of 240Ω and a coil current of 50mA, the relay has an operate time of 10ms and a release time of 5ms. The contact material is AgSnInO, known for its durability. The switched voltage maximum is 16V DC. The operating temperature range is from -40°C to 85°C, making it suitable for diverse environmental conditions.
The relay has body dimensions of 15.5x12.1x13.7mm and is designed for PCB mounting. It is part of the FBR51 series from FCL Components. Packaging options include tubes and cardboard boxes in various quantities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated coil voltage for the FBR51ND12-W1 relay is 12V DC.
The FBR51ND12-W1 relay has a maximum contact current rating of 35A.
The FBR51ND12-W1 relay has SPDT (Single Pole Double Throw) contacts.
The operating temperature range for the FBR51ND12-W1 relay is -40°C to 85°C.
The FBR51ND12-W1 relay is designed for PCB mounting.
