| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Count | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package Style | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

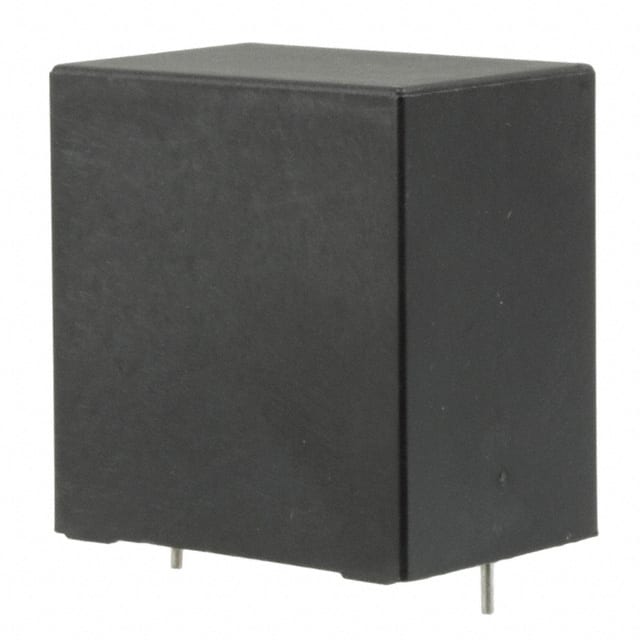

The FB37M6P0106KC is a metallized polypropylene film capacitor from Kyocera AVX's FB series. It offers a capacitance of 10 µF with ±10% tolerance and a high voltage rating of 1200V DC. The capacitor features low equivalent series resistance (ESR) of 8.5 mΩ, making it suitable for high-performance DC filtering and DC link applications. The dielectric is polypropylene with metallized construction, providing stable performance over a wide temperature range of -40°C to +105°C. The component is housed in a radial through-hole package with a lead spacing of 37.5 mm and PC pin terminations. Its dimensions are 42.5 mm length, 30 mm width, and 45 mm height. The capacitor is RoHS3 compliant and designed for harsh environment conditions with THB compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.21 | $7.21 |
| 10+ | $4.73 | $4.73 |
| 35+ | $4.47 | $4.47 |
| 105+ | $4.28 | $4.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µF.
1200V DC.
Metallized polypropylene (PP).
±10%.
Radial through-hole with 37.5 mm lead spacing.
8.5 mΩ.
-40°C to +105°C.
