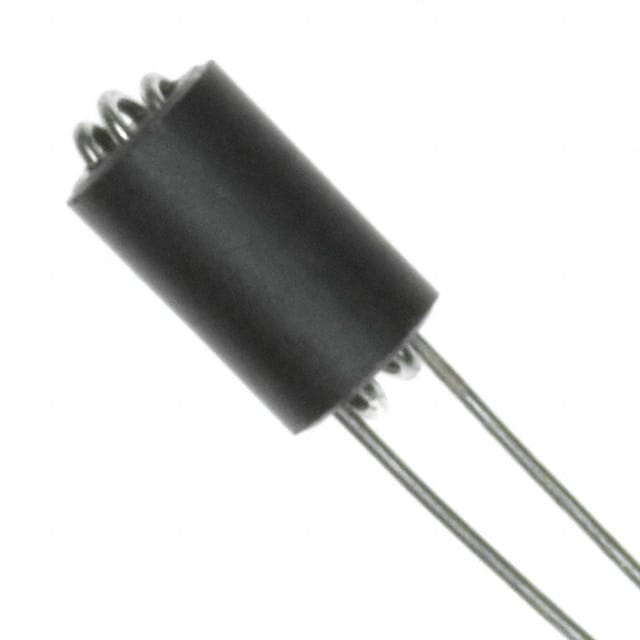

FB20022-4B-RC Ferrite bead with 900Ω impedance at 100MHz, 5A current rating, single line, radial through-hole package.
Mfr Part #:

FB20022-4B-RC

Available from 3 distributors
Mfr Name: Bourns
Bourns
Ferrite bead with 900Ω impedance at 100MHz, 5A current rating, single line, radial through-hole package.
✓ Total Stock: 2,626 pcs

FB20022-4B-RC Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,296 pcs
On Request
1296 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
1,296 pcs
On Request
1296 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FB20022-4B-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current Rating (Max)
Diameter
Height (Max)
Impedance @ Frequency
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Lines
Operating Temperature
Prop 65
Storage Temperature
View Similar Products (0)

FB20022-4B-RC Description

Short technical summary and product information.

The Bourns FB20022-4B-RC is a wide-band choke ferrite bead from the FB2000 series. It offers high impedance of 900 Ω at 100 MHz and 640 Ω at 10 MHz, providing excellent EMI suppression across a wide frequency range. Rated for 5 A continuous current with a maximum temperature rise of 20°C, this component is suitable for power line filtering and signal conditioning applications.



The part is housed in a radial through-hole package with a diameter of 5.99 mm (0.236") and a maximum height of 10.01 mm (0.394"). It operates over a temperature range of -40°C to +105°C, making it versatile for industrial and consumer electronics. The FB20022-4B-RC is RoHS compliant (indicated by the -RC suffix) and comes with a Proposition 65 warning for cancer and reproductive harm.



Ideal for differential and common mode configurations, this ferrite bead is a low-cost solution for EMI suppression in various electronic designs.

FB20022-4B-RC Quick Information

Product Type: Ferrite Bead
Series: FB2000
Canonical Name: Ferrite Bead, 900 Ω @ 100 MHz, 5A, Radial, Through Hole
Subcategory: Wide-Band Chokes

FB20022-4B-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FB20022-4B-RC Features

  • High impedance of 900 Ω at 100 MHz.
  • Rated current up to 5 A.
  • Through-hole radial mounting.
  • Wide operating temperature range -40 to +105 °C.
  • RoHS compliant for environmental safety.

FB20022-4B-RC Applications

  • Used for EMI suppression in power lines.
  • Suitable for differential and common mode filtering.
  • Ideal for wide-band choke applications.
  • Common in consumer and industrial electronics.

FB20022-4B-RC FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40 to +105 °C.

Is this component RoHS compliant?

Yes, RoHS3 compliant as indicated by the -RC suffix and verified in the datasheet.

What is the package type?

Radial through-hole package.

What is the impedance at 100 MHz?

900 Ω nominal.

What is the maximum current rating?

5 A.
