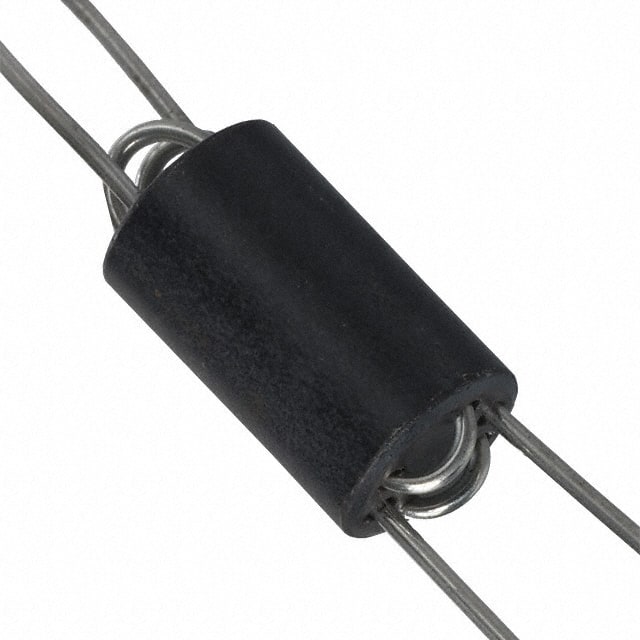

FB20021-4B-RC Common mode choke with 460 Ω impedance at 100 MHz, rated for 5 A current. Through hole axial package with 4 leads.
Mfr Part #:

FB20021-4B-RC

Available from 1 distributors
Mfr Name: Bourns
Bourns
Common mode choke with 460 Ω impedance at 100 MHz, rated for 5 A current. Through hole axial package with 4 leads.
✓ Total Stock: 9 pcs

FB20021-4B-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FB20021-4B-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Impedance @ Frequency
Mounting Type
Number of Lines
View Similar Products (0)

FB20021-4B-RC Description

Short technical summary and product information.

The Bourns FB20021-4B-RC is a wide-band common mode choke designed for EMI suppression. It features a 2-line configuration with an impedance of 460 Ω at 100 MHz (tolerance ±25%) and 160 Ω at 10 MHz. The component is rated for a continuous current of 5 A with a maximum temperature rise of 20°C. It operates over a temperature range of -40°C to +105°C. The choke is housed in an axial package with 4 leads, suitable for through hole mounting. It is RoHS compliant (with -RC suffix) and carries a California Prop 65 warning. Typical applications include power line filtering and signal line noise suppression.

FB20021-4B-RC Quick Information

Product Type: Common Mode Choke
Series: FB2000
Canonical Name: Common Mode Choke, 2 Lines, 460 Ω @ 100 MHz, 5 A, Through Hole
Subcategory: Through Hole Axial

FB20021-4B-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FB20021-4B-RC Features

  • 2-line common mode choke configuration.
  • 460 Ω impedance at 100 MHz.
  • Rated for 5 A continuous current.
  • Through hole axial package with 4 leads.
  • Operating temperature range -40 to +105°C.

FB20021-4B-RC Applications

  • Used for EMI suppression in power lines.
  • Suitable for signal line noise filtering.
  • Ideal for wide-band common and differential mode filtering.

FB20021-4B-RC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40 to +105 °C.

Is this component RoHS compliant?

Yes, RoHS3 compliant with -RC suffix.

What is the package type?

Axial - 4 Leads, through hole mounting.

What is the impedance at 100 MHz?

460 Ω nominal, ±25% tolerance.

What is the rated current?

5 A with 20°C max temperature rise.

How many lines does it have?

2 lines.

What is the impedance at 10 MHz?

160 Ω nominal, ±25% tolerance.
