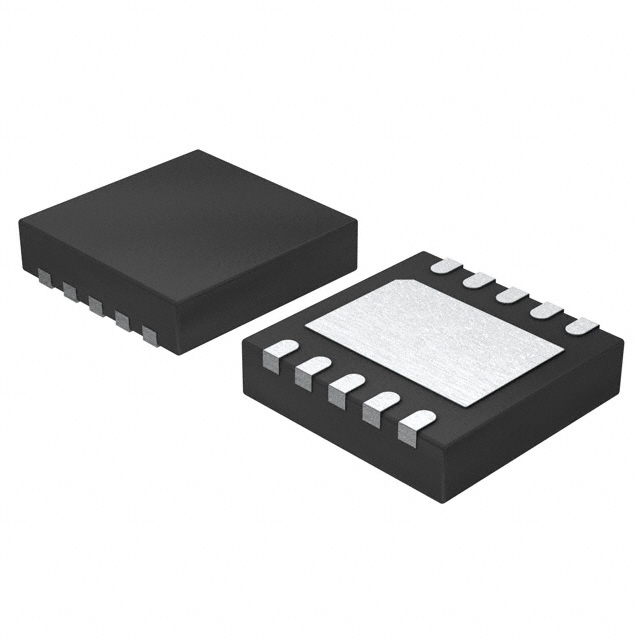

The FAN8811MNTXG from ON Semiconductor is a high-speed dual gate driver IC designed for driving N-Channel MOSFETs in half-bridge or synchronous buck configurations. It supports high-voltage operation up to 80V for the floating high-side driver and integrates a bootstrap diode for the bias supply.
Key electrical specifications include a wide supply voltage range of 7.5V to 16V, with a bootstrap supply voltage capability of up to 100V. The driver provides 3A source and 6A sink output current, capable of driving a 1nF load with fast rise and fall times of 6ns and 4ns, respectively. It features fast propagation delay times of typically 30ns and 2ns delay matching.
This device operates within a junction temperature range of -40°C to 125°C. It is available in a 10-WDFN (4x4) surface-mount package. The FAN8811MNTXG is suitable for power supplies in telecom and datacom, half-bridge and full-bridge converters, and synchronous-buck converters.
Compliance includes RoHS3 compliance, Pb-Free, and Halogen Free status. The Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 7.5V to 16V, with an absolute maximum of 18V.
The junction temperature operating range is -40°C to 125°C.
The FAN8811MNTXG is available in a 10-WDFN exposed pad package (4x4mm) for surface mount mounting.
The driver can source 3A and sink 6A peak current.
The floating high-side driver can operate with supply voltages up to 80V.
