Mfr Part #:

FAN7093

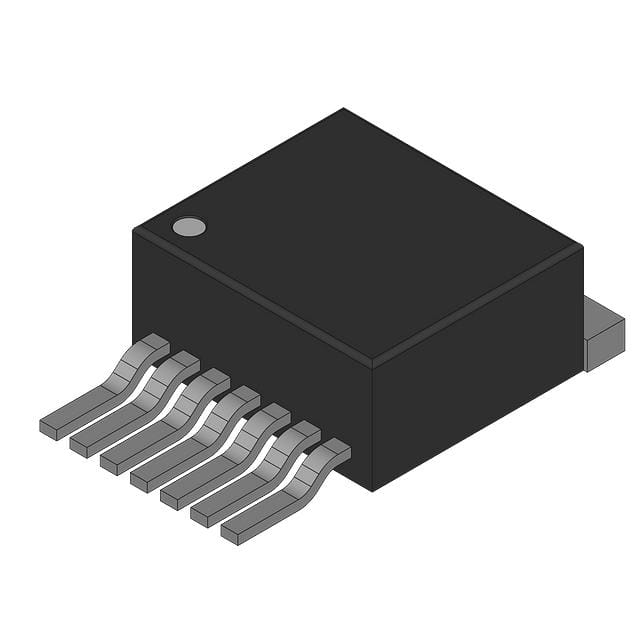

Name: FAN7093
Brand: On Semiconductor
SKU: FAN7093

Mfr Name: On Semiconductor

Description:

IC HALF BRIDGE DRVR 46A TO263-7

Stock on Request

FAN7093 Description

Short technical summary and product information.

IC HALF BRIDGE DRVR 46A TO263-7

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

FAN7093-F085

On Semiconductor

IC HALF BRIDGE DRVR 46A TO263-7

Category	Full Half-Bridge Drivers
Manufacturer Name	On Semiconductor
Applications	DC Motors, General Purpose
Current	88A
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Features	Latch Function, Slew Rate Controlled, Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	18.2mOhm LS (Max), 12.3mOhm HS (Max)
Supplier Device Package	TO-263-7
Technology	DMOS
Voltage	7V ~ 18V
