| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The FAN63901JMPX from ON Semiconductor is a highly integrated secondary-side adaptive USB Type-C charging controller designed for USB Power Delivery 2.0/3.0 applications. It features a fully autonomous USB PD state machine compliant with the latest USB PD 3.0 specification, minimizing design time and cost.
This controller supports Programmable Power Supply (PPS) rules, allowing voltage control from 3.3 V to 21 V and current limits from 1 A to 3 A. It integrates synchronous rectifier control, an NMOS gate driver for VBUS load switch control, and Constant Voltage (CV)/Constant Current (CC) control blocks with adjustable internal references. Protections include output over-voltage, under-voltage, external and internal over-temperature, CC over-voltage, and Cable Fault Protection.

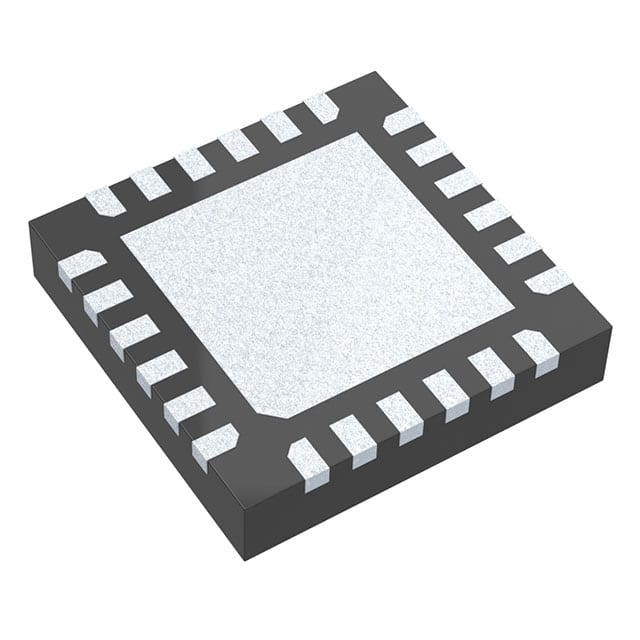

The FAN63901JMPX operates within a temperature range of -40°C to 125°C (TJ) and requires 8 mA of current. It is supplied in a 24-WQFN (4x4) package, suitable for surface mounting.
Typical applications include battery chargers for smartphones, feature phones, and tablet PCs, as well as AC-DC adapters for portable devices requiring CV/CC control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.3 V to 20 V.
The operating temperature range is -40°C to 125°C (TJ).
It is supplied in a 24-WFQFN Exposed Pad package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
