| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Input Voltage | |
| Isolation | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Shutdown | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |
The FAN6290QFMX from ON Semiconductor is a compact secondary-side adaptive charging controller, synchronous rectifier control, and USB Type-C control IC. It is designed for power supply support circuits and functions as a switching controller.
This component features an input voltage range of 0 V to 16 V and an output voltage range of 3.6 V to 12 V. It can handle an output current of up to 3 A and operates with a supply current of 8 mA. The device has a rise time of 20 ns and a fall time of 9 ns.

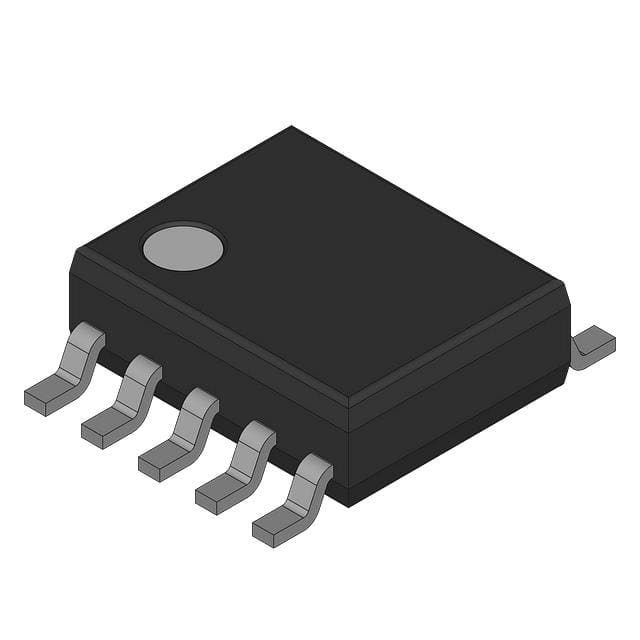

Designed for surface mounting, the FAN6290QFMX comes in a 10-SOIC package with dimensions of 0.154" (3.90mm) width. It operates within a temperature range of -40°C to 125°C. The topology is PWM and it is non-isolated, with one output.
This switching controller is suitable for applications requiring secondary-side control and synchronous rectification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0 V to 16 V.
SOP-10 (10-SOIC).
-40°C to 125°C.
3.6 V to 12 V.
3 A.
PWM.
SMD/SMT.
