| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Supplier Device Package | |
| Topology | |
| Voltage |
The FAN604HMX is an integrated circuit from ON Semiconductor, categorized as an AC/DC converter and offline switcher. It is designed for flyback topologies and features an isolated output.
Key electrical specifications include a supply voltage range of 6V to 25V and a switching frequency that can be adjusted between 18.5kHz and 130kHz. The device offers fault protection against over-temperature and over-voltage conditions. Its operating temperature range is -40°C to 150°C (TJ).

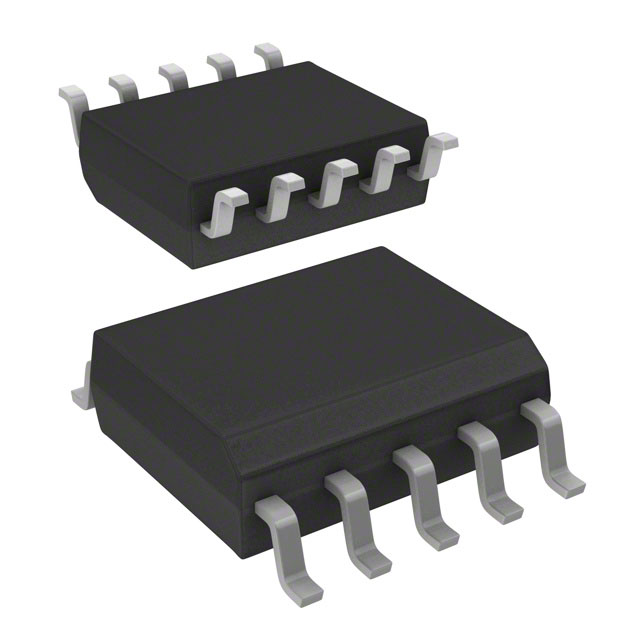

This component is housed in a 10-SOIC package, with a specific case outline of 10-SOP (0.154", 3.90mm Width). It is designed for surface mount applications and is supplied in tape and reel packaging.
The FAN604HMX is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 6V to 25V.
The FAN604HMX is available in a 10-SOIC (10-SOP, 3.90mm width) surface mount package.
The operating temperature range is -40°C to 150°C (junction temperature).
The switching frequency range is 18.5kHz to 130kHz.
It uses flyback topology and provides isolated output.
The startup voltage is 17.2V.
It includes over temperature and over voltage protection.
