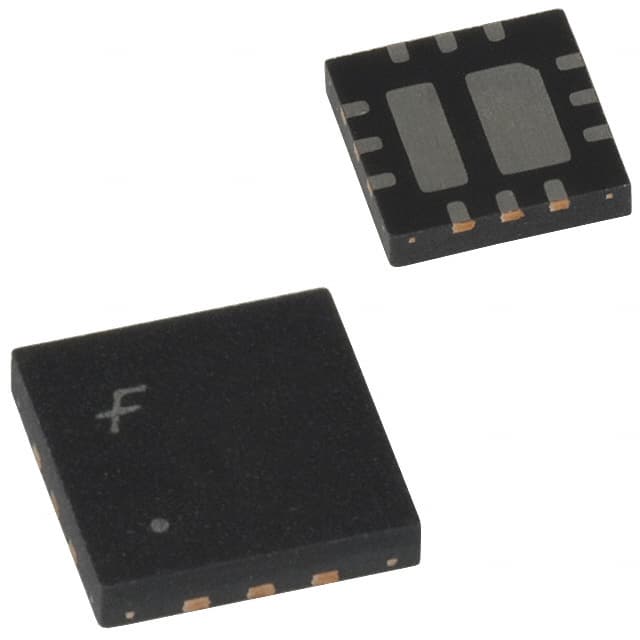

FAN5608DHMPX The FAN5608DHMPX is an LED driver from On Semiconductor designed for backlight applications. It operates with an input voltage range of 2.7V to 5V and provides up to 20mA output current.
Mfr Part #:

FAN5608DHMPX

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FAN5608DHMPX is an LED driver from On Semiconductor designed for backlight applications. It operates with an input voltage range of 2.7V to 5V and provides up to 20mA output current.
✓ Total Stock: 9,723 pcs
$ Price Range: $0.17

FAN5608DHMPX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,723 pcs
On Request
9723 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FAN5608DHMPX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Efficiency
Frequency
Internal Switch(s)
Mounting Type
Number of Outputs
Operating Temperature
Supplier Device Package
Topology
Type
Voltage
View Similar Products (0)

FAN5608DHMPX Description

Short technical summary and product information.

The FAN5608DHMPX is a versatile LED driver IC manufactured by On Semiconductor, suitable for backlight applications. It features two independent channels capable of driving up to six LEDs per channel. The device operates from an input voltage range of 2.7V to 5V and offers an adaptive output voltage drive to maximize efficiency, achieving up to 85% efficiency.



Key electrical characteristics include a 20mA output current capability and PWM dimming control. The boost circuit operates in PWM/PFM mode with a 500kHz switching frequency. It includes two built-in DACs for independent digital brightness control for both channels. The IC also incorporates soft-start circuitry to prevent excessive current draw during power-on and provides LED short circuit protection.



Packaged in a 12-MLP (4x4) with an exposed pad, the FAN5608DHMPX is designed for surface mounting. Its compact size and integrated features minimize the need for external components, making it ideal for space-constrained designs in devices like cell phones, handheld computers, PDAs, and MP3 players.

FAN5608DHMPX Quick Information

Product Type: LED Driver
Canonical Name: FAN5608DHMPX LED Driver
Subcategory: DC DC Regulator

FAN5608DHMPX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FAN5608DHMPX Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

FAN5608DHMPX Features

  • Drives up to six LEDs per channel.
  • Adaptive output voltage for efficiency.
  • PWM/PFM mode boost circuit operation.
  • Up to 85% efficiency achieved.
  • 12-MLP (4x4) surface mount package.

FAN5608DHMPX Applications

  • Ideal for cell phone backlights.
  • Suitable for handheld computer displays.
  • Used in PDA and MP3 player screens.
  • Powers keyboard backlights effectively.

FAN5608DHMPX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the FAN5608DHMPX?

The input voltage range is 2.7V to 5V.

What package does the FAN5608DHMPX come in?

The FAN5608DHMPX is available in a 12-MLP (4x4mm) package with exposed pad.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Does the FAN5608DHMPX support dimming?

Yes, it supports PWM dimming.

What topology does the FAN5608DHMPX use?

It uses a step-up (boost) topology.

What is the efficiency of the FAN5608DHMPX?

Efficiency is up to 85%.

What protection features does the FAN5608DHMPX include?

It includes LED short circuit protection.
