FAN5341UMPX The ON Semiconductor FAN5341UMPX is an asynchronous boost LED driver capable of delivering up to 500mW. It features a 1.2MHz fixed switching frequency and a single-wire digital interface for brightness control.
Mfr Part #:

FAN5341UMPX

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FAN5341UMPX is an asynchronous boost LED driver capable of delivering up to 500mW. It features a 1.2MHz fixed switching frequency and a single-wire digital interface for brightness control.
✓ Total Stock: 48,200 pcs
$ Price Range: $0.17

FAN5341UMPX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
45,200 pcs
On Request
45200 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FAN5341UMPX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Frequency
Halogen Free
Input Voltage
Internal Switch(s)
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
Output Power
Supplier Device Package
Supplier Package
Topology
Type
Voltage
View Similar Products (0)

FAN5341UMPX Description

Short technical summary and product information.

The FAN5341UMPX from ON Semiconductor is an asynchronous constant-current LED driver designed for small form-factor applications. It efficiently delivers up to 500 mW to a series string of 3 to 5 LEDs. The device operates with a wide input voltage range of 2.7 V to 5.5 V and features a fixed 1.2 MHz switching frequency, enabling the use of small external components.



This LED driver utilizes a simple single-wire digital control interface to program LED brightness levels in 32 linear steps. For enhanced safety and reliability, the FAN5341UMPX includes integrated over-voltage, over-current, short-circuit detection, and thermal shutdown protection. Input under-voltage lockout is also provided.

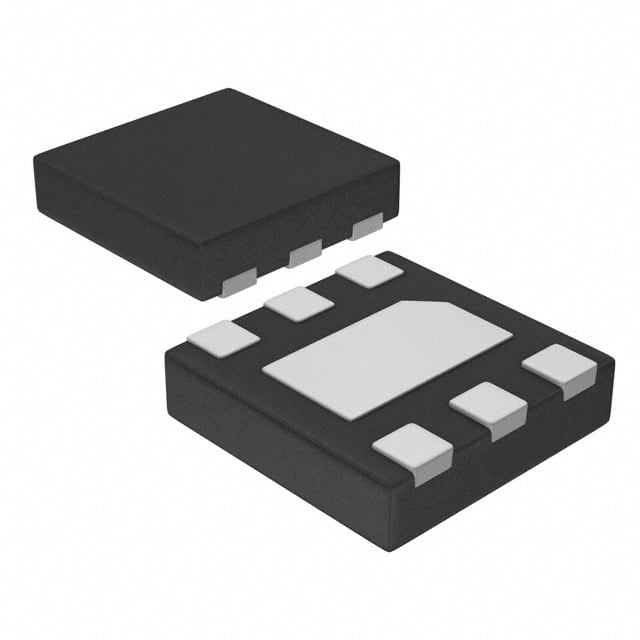

The FAN5341UMPX is housed in a low-profile, 2 mm x 2 mm x 0.55 mm 6-lead UMLP package. It is Pb-Free, Halogen Free/BFR Free, and RoHS compliant, making it suitable for various portable electronic devices.



Applications include cellular mobile handsets, mobile internet devices, portable media players, PDAs, DSCs, and MP3 players.

FAN5341UMPX Quick Information

Product Type: LED Driver
Canonical Name: FAN5341UMPX Asynchronous Constant-Current LED Driver
Subcategory: Power Management

FAN5341UMPX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FAN5341UMPX Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

FAN5341UMPX Features

  • Asynchronous boost converter topology.
  • Up to 500 mW output power.
  • Drives 3 to 5 LEDs in series.
  • Single-wire digital interface for brightness.
  • Low profile 6-lead UMLP package.

FAN5341UMPX Applications

  • Cellular mobile handsets.
  • Mobile internet devices.
  • Portable media players.
  • PDAs and DSCs.
  • MP3 players.

FAN5341UMPX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the FAN5341UMPX?

The input voltage range is 2.7 V to 5.5 V.

What is the switching frequency of the FAN5341UMPX?

The switching frequency is fixed at 1.2 MHz.

How many LEDs can the FAN5341UMPX drive in series?

It can drive 3 to 5 LEDs in series.

What is the maximum output power of the FAN5341UMPX?

The maximum output power is 500 mW.

What type of package is the FAN5341UMPX in?

It is available in a 6-lead UMLP (2x2) package.

What is the operating temperature range for the FAN5341UMPX?

The operating temperature range is -40°C to 85°C.
