FAN3852UC16X The ON Semiconductor FAN3852UC16X is a microphone pre-amplifier with digital output, designed for mobile handset and notebook PC applications. It integrates a pre-amplifier, LDO, and ADC.
Mfr Part #:

FAN3852UC16X

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FAN3852UC16X is a microphone pre-amplifier with digital output, designed for mobile handset and notebook PC applications. It integrates a pre-amplifier, LDO, and ADC.
✓ Total Stock: 6,400 pcs

FAN3852UC16X Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,400 pcs
On Request
4400 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FAN3852UC16X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Mounting Type
Number of Channels
Operating Temperature
Supplier Device Package
Supply Current
Voltage
View Similar Products (0)

FAN3852UC16X Description

Short technical summary and product information.

The FAN3852UC16X from ON Semiconductor is an integrated microphone pre-amplifier featuring a digital Pulse Density Modulation (PDM) output. It is optimized for mobile handset and notebook PC microphone applications, accepting input from Electret Condenser Microphones (ECM).



This device operates within a supply voltage range of 1.64V to 3.63V and functions across an industrial temperature range of -40°C to 85°C. Key electrical specifications include a typical supply current of 420µA, a low power sleep mode current of 1.5µA, and a power-down mode current below 20µA. It offers a signal-to-noise ratio (SNR) of 62 dB at 16 dB gain and a total harmonic distortion of 0.02%.

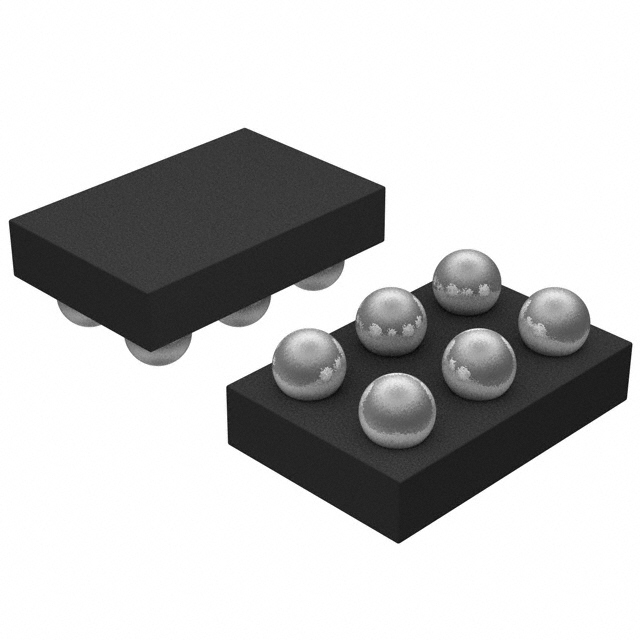

The FAN3852UC16X supports an input clock frequency range of 1 MHz to 4 MHz and features a standard 5-wire digital interface. It includes an integrated Low Drop-Out (LDO) regulator. The component is housed in a compact 6-ball, 0.400 mm pitch WLCSP package measuring 1.242 mm x 0.842 mm, suitable for surface mounting.



ESD protection is provided with 1.5 kV HBM on the MIC input and 8 kV HBM on other pins. Typical applications include mobile handsets, headset accessories, and personal computers requiring digital audio output from ECMs.

FAN3852UC16X Quick Information

Product Type: Microphone Pre-Amplifier
Canonical Name: FAN3852UC16X Microphone Pre-Amplifier with Digital Output
Subcategory: Microphone Pre-Amplifier

FAN3852UC16X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FAN3852UC16X Features

  • Integrates pre-amplifier, LDO, and ADC.
  • Outputs digital Pulse Density Modulation (PDM) data.
  • Optimized for mobile handset applications.
  • Low power consumption in sleep and power-down modes.
  • Compact 6-WLCSP package for surface mounting.

FAN3852UC16X Applications

  • Mobile handset microphones.
  • Notebook PC microphones.
  • Headset accessories.
  • Digital audio interfaces.

FAN3852UC16X FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FAN3852UC16X?

The FAN3852UC16X operates from 1.64V to 3.63V.

What is the operating temperature range for this IC?

-40°C to 85°C.

What is the package type for the FAN3852UC16X?

It is packaged in a 6-WLCSP (1.24x0.84 mm).

Does the device support input clock frequencies between 1 and 4 MHz?

Yes, it supports input clock frequencies from 1 MHz to 4 MHz.

What is the typical supply current of the IC?

The typical supply current is 420µA.

What is the signal-to-noise ratio at 16 dB gain?

The signal-to-noise ratio is 62dB.

What is the ESD protection level on the microphone input?

It has ESD protection of at least 1.5kV on the microphone input.
