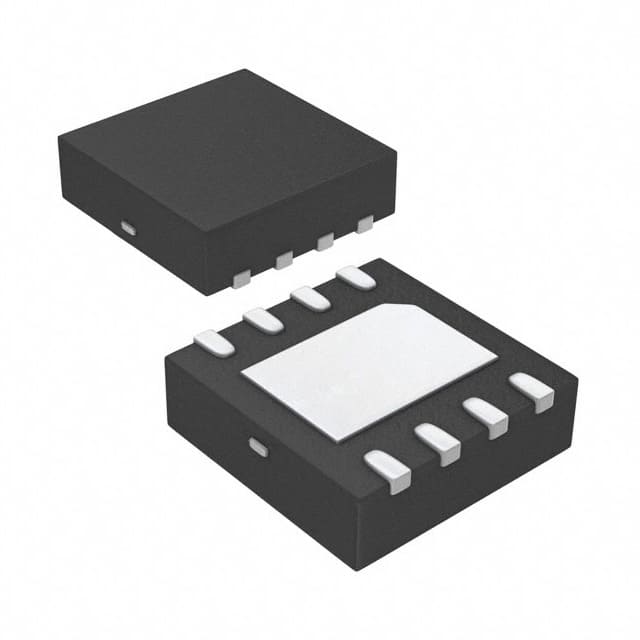

FAN3122TMPX The FAN3122TMPX from ON Semiconductor is a single-channel, low-side gate driver designed for N-channel MOSFETs. It operates over a wide voltage range and offers high output current capabilities.
Mfr Part #:

FAN3122TMPX

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FAN3122TMPX from ON Semiconductor is a single-channel, low-side gate driver designed for N-channel MOSFETs. It operates over a wide voltage range and offers high output current capabilities.
✓ Total Stock: 53,297 pcs
$ Price Range: $2.01

FAN3122TMPX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
51,000 pcs
On Request
51000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,297 pcs
On Request
2297 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FAN3122TMPX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Gate Type
Input Type
Logic Voltage
Mounting Type
Number of Drivers
Operating Temperature
Rise
Supplier Device Package
Voltage
View Similar Products (0)

FAN3122TMPX Description

Short technical summary and product information.

The FAN3122TMPX is a low-side gate driver IC manufactured by ON Semiconductor. It is designed to drive N-channel MOSFETs in a low-side configuration. This component features a wide operating voltage range of 4.5V to 18V and supports logic voltages of 0.8V and 2V.



Key electrical characteristics include high output current capabilities of 10.6A and 11.4A, with fast rise times of 23ns and 19ns. The device operates within a temperature range of -55°C to 150°C (TJ).



The FAN3122TMPX is packaged in an 8-WDFN exposed pad, specifically an 8-MLP (3x3) surface mount package. It is designed for applications requiring efficient and reliable gate driving for power MOSFETs.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating, indicating unlimited moisture sensitivity. REACH status is unaffected.

FAN3122TMPX Quick Information

Product Type: Gate Driver
Canonical Name: FAN3122TMPX Low-Side Gate Driver
Subcategory: Gate Drivers

FAN3122TMPX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FAN3122TMPX Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

FAN3122TMPX Features

  • Single low-side N-channel MOSFET driver.
  • Wide 4.5V to 18V operating voltage range.
  • High 10.6A and 11.4A output current.
  • Fast 23ns and 19ns rise times.
  • Surface mount 8-MLP (3x3) package.

FAN3122TMPX Applications

  • Drives a single N-Channel MOSFET low-side.
  • Used in switch mode power supplies.
  • Suitable for DC-DC converter circuits.
  • Applicable in motor control inverters.

FAN3122TMPX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

4.5V to 18V.

What is the package type?

8-WDFN Exposed Pad (8-MLP 3x3) surface mount.

What is the operating temperature range?

-55°C to 150°C (junction).

What is the output current capability?

10.6A and 11.4A (two values).

What is the rise time?

23ns and 19ns (two values).

What is the logic voltage threshold?

0.8V and 2V.

How many drivers does it have?

Single driver.
