FAN3100CMPX The ON Semiconductor FAN3100CMPX is a single, low-side gate driver designed for N-channel MOSFETs. It provides high peak current pulses for efficient switching in power converters.
Mfr Part #:

FAN3100CMPX

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FAN3100CMPX is a single, low-side gate driver designed for N-channel MOSFETs. It provides high peak current pulses for efficient switching in power converters.
✓ Total Stock: 3,016 pcs
$ Price Range: $2.01

FAN3100CMPX Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,012 pcs
On Request
2012 pcs On Request 1 On Request On Request 1248+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 1248+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FAN3100CMPX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Gate Type
Halogen Free
Input Type
Mounting Type
Number of Drivers
Operating Temperature
Propagation Delay
Rise
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

FAN3100CMPX Description

Short technical summary and product information.

The FAN3100CMPX from ON Semiconductor is a high-speed, low-side gate driver IC designed to drive N-channel enhancement-mode MOSFETs in low-side switching applications. It delivers high peak current pulses, crucial for short switching intervals and maximizing efficiency in high-frequency power converter designs.



This driver operates over a wide voltage range of 4.5V to 18V and can provide up to 3A peak sink/source current. It features dual logic inputs that can be configured for non-inverting or inverting operation, with an enable function. Internal circuitry includes an under-voltage lockout to ensure stable operation. The device boasts fast switching performance with a typical rise time of 13ns and a fall time of 9ns with a 1nF load.

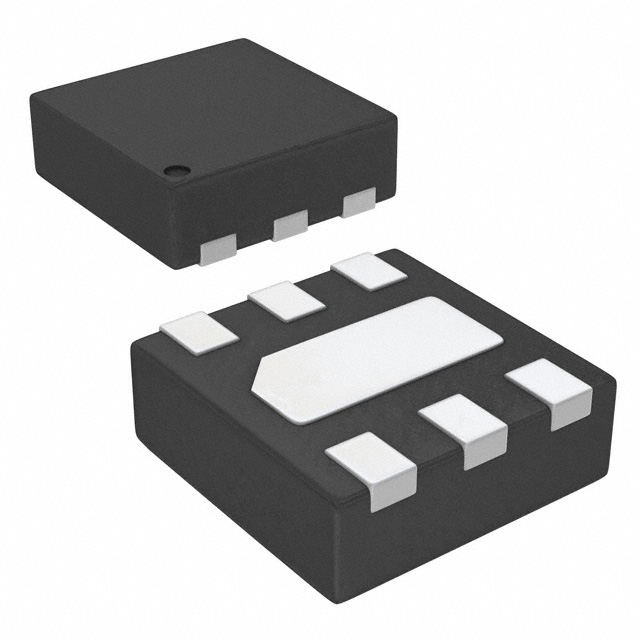

The FAN3100CMPX is available in a compact 6-lead, 2x2 mm Molded Leadless Package (MLP), also known as WDFN, offering excellent thermal performance. It is rated for an operating temperature range of -55°C to 150°C (TJ) and is Pb-free and Halogen-free.



Key applications include switch-mode power supplies (SMPS), high-efficiency MOSFET switching, synchronous rectifier circuits, DC-to-DC converters, and motor control.

FAN3100CMPX Quick Information

Product Type: Gate Driver
Canonical Name: FAN3100CMPX Single Low-Side Gate Driver
Subcategory: Low-Side Gate Driver

FAN3100CMPX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

FAN3100CMPX Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

FAN3100CMPX Features

  • Drives N-channel MOSFETs in low-side configurations.
  • 3A peak sink/source current capability.
  • 4.5V to 18V wide operating voltage range.
  • Fast switching with 13ns rise and 9ns fall times.
  • Compact 6-lead 2x2mm WDFN package.

FAN3100CMPX Applications

  • Ideal for switch-mode power supplies.
  • Used in high-efficiency MOSFET switching.
  • Suitable for synchronous rectifier circuits.
  • Applicable to DC-to-DC converters.
  • Designed for motor control applications.

FAN3100CMPX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the FAN3100CMPX?

The FAN3100CMPX operates from 4.5V to 18V.

What is the peak sink/source current of the FAN3100CMPX?

The FAN3100CMPX provides a peak sink/source current of 3A at VDD = 12V.

What are the typical rise and fall times for the FAN3100CMPX with a 1nF load?

The typical rise time is 13ns and the typical fall time is 9ns with a 1nF load.

What is the operating temperature range for this gate driver?

The operating temperature range is -55°C to 150°C (TJ).

What package type is the FAN3100CMPX supplied in?

The FAN3100CMPX is supplied in a 6-lead, 2x2mm WDFN exposed pad package.
