| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
258,286 pcs
|
258286 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
284 pcs
|
284 pcs | On Request | 1 | On Request | On Request | 0042+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The FAN2500S30X is a linear voltage regulator manufactured by ON Semiconductor, designed for applications requiring a stable 6.5V output. This device operates with a very low quiescent current of 50 µA, making it suitable for power-sensitive designs. It offers a dropout voltage of 0.14V at 100mA and features over-temperature protection.

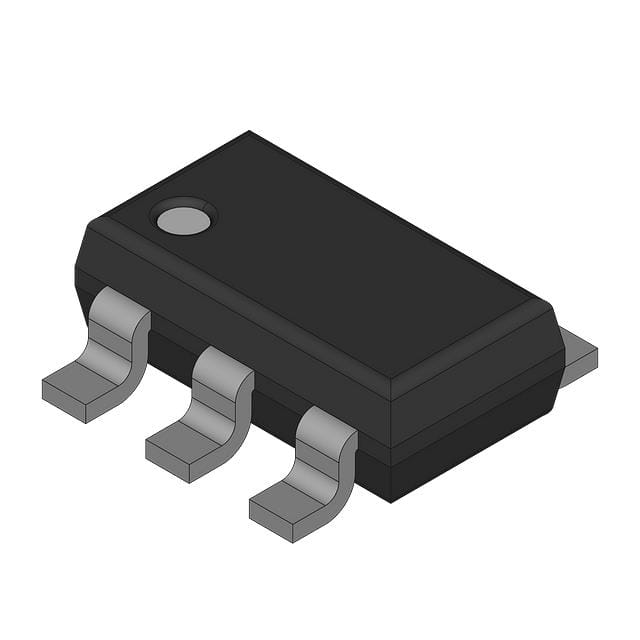

The regulator is housed in a compact SC-74A, SOT-753 package, specifically the SOT-23-5 variant, and is designed for surface mounting. Its operating temperature range is from -40°C to 125°C, ensuring reliable performance in diverse environmental conditions. The FAN2500S30X includes an Enable control feature for power management.
With a PSRR of 43dB at 120Hz, this regulator is capable of filtering noise effectively. It is a single-output positive voltage regulator, ideal for integration into compact electronic systems where space and power efficiency are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.5V.
50 µA.
0.14V (maximum).
-40°C to 125°C.
SC-74A, SOT-753, and SOT-23-5.
Yes, it includes an enable control feature.
Over temperature protection.
