| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
207,936 pcs
|
207936 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Mounting Type | |
| Operating Temperature Range | |
| Power Dissipation | |
| Tape & Reel | |
| Type | |
| Voltage |
The FAM65CR51ADZ2 is a half bridge MOSFET power module from On Semiconductor, integrating a boost converter stage for use in multiphase and semi-bridgeless power factor correction (PFC) circuits. It is specifically designed for onboard charger (OBC) applications in electric and plug-in hybrid electric vehicles.
Key electrical specifications include a maximum drain-to-source voltage of 650V, continuous drain current of 41A at 25°C, and a single pulse avalanche energy rating of 623mJ. The module provides 5kVrms isolation voltage and operates over a junction temperature range of -40°C to 150°C.

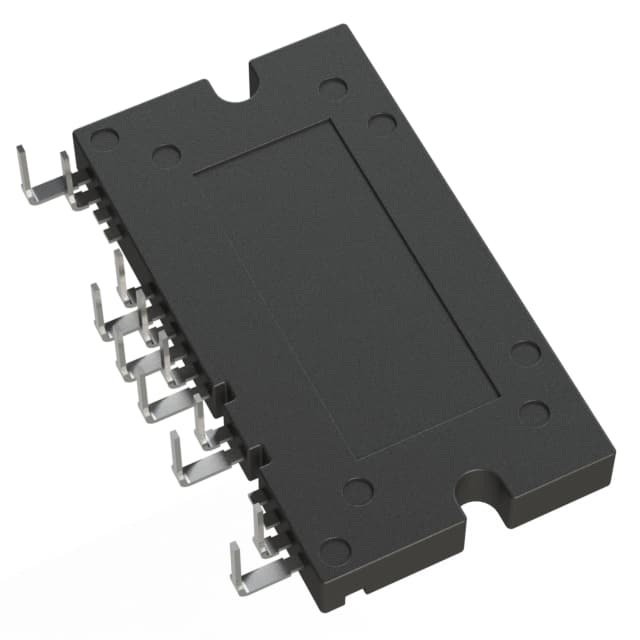

The module is housed in a 12-SSIP exposed pad package with formed L-shaped leads for through-hole mounting. It uses an Al2O3 direct bonded copper (DBC) substrate for thermal management and is packed in tubes. The device is automotive qualified per AEC Q101 and AQG324 guidelines.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.15 | $40.15 |
| 12+ | $32.76 | $32.76 |
| 108+ | $28.94 | $28.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 650V.
The continuous drain current is 41A at 25°C with VGS = 10V.
It comes in a 12-SSIP Exposed Pad, Formed Leads package with L-shaped leads for through-hole mounting.
The operating temperature range is -40°C to 125°C.
Yes, it is listed as RoHS3 Compliant, though this is unverified.
The isolation voltage is 5000 Vrms.
Yes, it is automotive qualified per AEC Q101 and AQG324 guidelines.
