| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Air Flow (Typical @ 60 Hz) | |
| Approval Agency | |
| Bearing Type | |
| Connection | |
| Current Rated (Typical @ 50 Hz) | |
| Current Rated (Typical @ 60 Hz) | |
| Fan Type | |
| Frame Material | |
| Frequency | |
| Impeller Material | |
| Lead Style | |
| Life Expectancy | |
| Motor Protection | |
| Motor Type | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rated (Typical @ 60 Hz) | |
| RPM | |
| Static Pressure | |
| Static Pressure (Typical @ 60 Hz) | |
| Termination | |
| Voltage | |
| Weight | |
| Width | |
| noise (Typical @ 60 Hz) | |
| speed (Typical @ 60 Hz) |

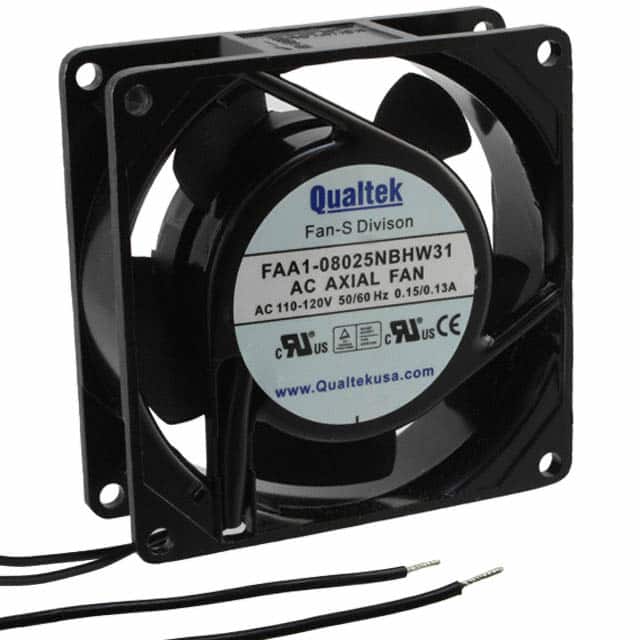

The Qualtek FAA1-08025NBHW31 is an AC axial fan from the FAA1-08025 series. It features a compact 80x25mm square frame constructed from aluminum alloy with a plastic impeller rated UL94V-0. The fan is powered by a shaded pole induction motor that is impedance protected.
At 115VAC and 50Hz, the fan draws 0.08A and delivers 7.40W with an airflow of 17.0 CFM (0.481 m³/min) and static pressure of 0.099 inH2O. At 60Hz it draws 0.07A and delivers 5.80W with an airflow of 21.0 CFM (0.594 m³/min) and static pressure of 0.125 inH2O. Noise levels are 21.2 dBA at 50Hz and 27.8 dBA at 60Hz. The operating temperature range is -10°C to 70°C.
The fan uses ball bearings with a rated life expectancy of 50,000 hours minimum. Connection is via two UL 1430 AWG 22 wire leads, 280mm in length. The unit weighs 210 grams and carries CE, cURus, and TUV approvals. Rated speed is 2300 RPM at 50Hz and 2800 RPM at 60Hz.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.94 | $20.94 |
| 10+ | $16.98 | $16.98 |
| 30+ | $15.18 | $15.18 |
| 50+ | $15.00 | $15.00 |
| 100+ | $14.56 | $14.56 |
| 500+ | $13.12 | $13.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 115VAC.
The operating temperature range is -10°C to 70°C.
The fan uses ball bearings with a minimum life expectancy of 50,000 hours.
At 115VAC, 50Hz the fan provides 17.0 CFM (0.481 m³/min); at 60Hz it provides 21.0 CFM (0.594 m³/min).
The fan is approved to CE, cURus, and TUV standards.
Noise level is 21.2 dBA at 50Hz and 27.8 dBA at 60Hz.
