| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Dimensions | |
| For Use With | |
| Height | |
| Lead Spacing | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Material | |
| Mounting Type | |
| Number of LEDs | |
| Optical Pattern | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

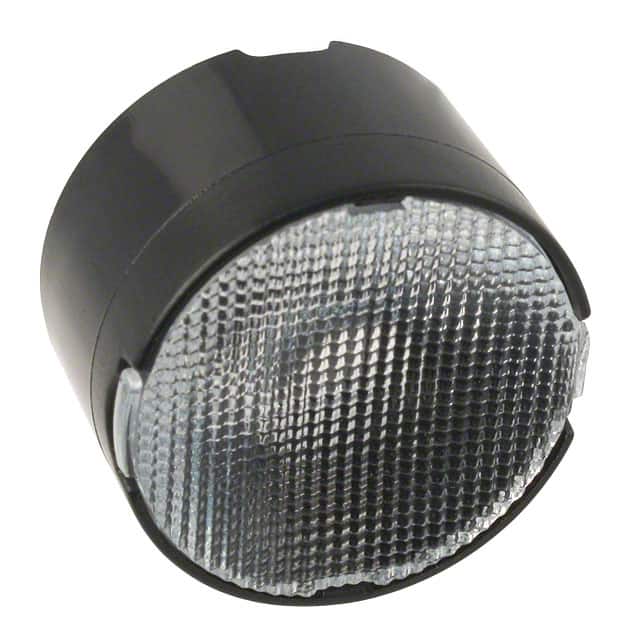

This LEDiL FA10698_LN2-REC is an optical lens assembly designed for single LED applications. It features a clear PMMA lens and a black PC holder, with a total height of 13.5 mm and a diameter of 21.6 mm. The lens is optimized for a rectangular beam pattern, with typical beam angles varying depending on the LED used, such as 38.0° x 24.0° for the XM-L2 LED.
The assembly utilizes an adhesive tape for mounting, making it suitable for various lighting solutions. It is compatible with LEDs from manufacturers like Cree, Nichia, and OPTGAN. The lens is diffused, providing a uniform light distribution.
This component is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected. It is supplied in standard packaging of 2304 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The beam angle varies depending on the LED used. For example, with an LED XM-L2, the measured beam angle is 38.0° x 24.0°.
The efficiency is 79% when used with an LED XM-L2.
The lens is made of PMMA, the holder is PC, and the tape is acrylic foam.
The lens has a diameter of 21.6 mm and a height of 13.5 mm.
It is mounted using adhesive tape.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
